Welcome to Spenomatic Energy Solutions. Your reliable partner in delivering premium industrial equipment and accessories, precisely engineered to meet the rigorous demands of various industries. Serving sectors such as natural gas, power, petroleum, pharmaceuticals, chemicals, and fertilizers, our comprehensive solutions are designed to optimize the efficiency and dependability of your operations. From advanced isolation valves and bellow seal valves to specialized steam traps, pressure reduction valves, and condensate pumps, our products are built to perform flawlessly in critical systems, including hot and cold water, thermal oil, natural gas, steam, and refrigeration. Trust Spenomatic Kenya Ltd. to drive the success of your industrial ventures with quality you can depend on.
Solutions Spanning Over Different Industries
Steam Systems
Refrigeration Systems
Thermal Oil Systems
Natural Gas
Hot & Cold Water Systems
Mechanical Condensate Recovery unit
- Click on labelled components to view more details
The Mechanical Condensate Recovery Unit by Spenomatic Energy Solutions is an advanced, energy-efficient solution designed for condensate recovery without requiring external power sources such as electricity. It operates using compressed air or steam, making it ideal for hazardous and explosion-proof environments.
Key Features & Benefits:
- No External Power Required – Runs on steam or compressed air, reducing energy consumption.
- No Cavitation Issues – Ensures smooth operation even at high condensate temperatures.
- Compact & Space-Saving – Eliminates the need for a separate water collection tank.
- Durable Construction – Features a cast steel body and stainless steel internal components for long-lasting performance.
- Corrosion-Resistant – Equipped with an alloy steel compression spring for extended life.
- Explosion-Proof Design – No static electricity or sparks, making it safe for hazardous environments.
Cost-Saving Solution – Reduces water treatment costs, boiler blowdown, and fuel consumption while recovering heat energy.
Flexible Installation – Supports both open and closed condensate recovery systems for different operational needs.

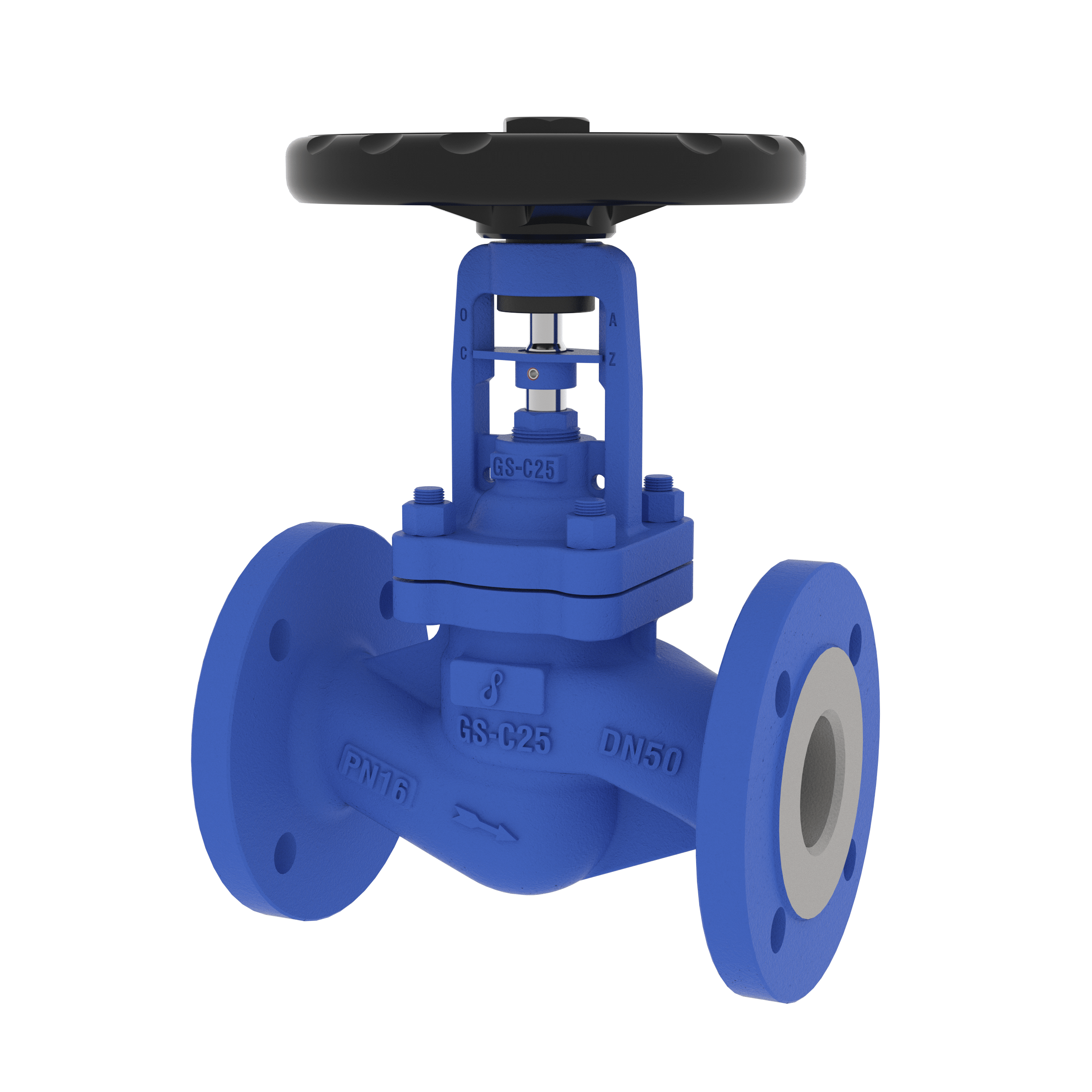

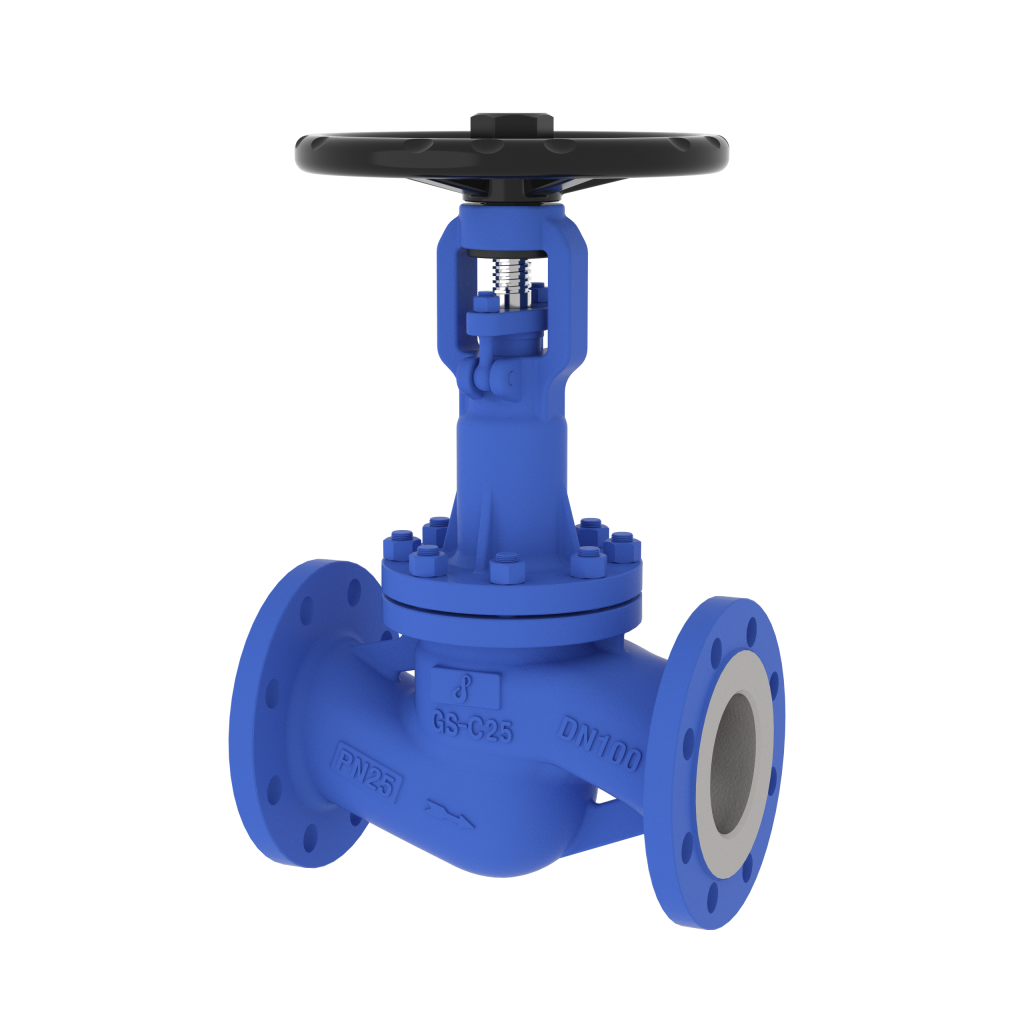

Bellow Seal Valve
The Bellow Seal Valve by Spenomatic Energy Solutions is designed for zero leakage and long-lasting performance in industrial applications. It features a double-seal system (bellows + packing) to ensure superior sealing, preventing fugitive emissions. The conical disc design enhances sealing efficiency while making operation smoother and easier.
Applications:
🔹 Steam Systems
🔹 Thermal Oil Systems
🔹 Hot & Cold Water Systems
🔹 Petrochemical & Chemical Industries
🔹 Power Plants & Energy Facilities
Technical Specifications:
- Body Material: GS-C25, GGG-40, Stainless Steel 1.4401
- Max Opening & Closing Life: 10,000 cycles
- Pressure Ratings: PN16, PN25, PN40, ANSI 150, ANSI 300
- Size Range: DN15 – DN400
- Temperature Range: Suitable for steam, hot oil, and hot/cold water systems
Types:

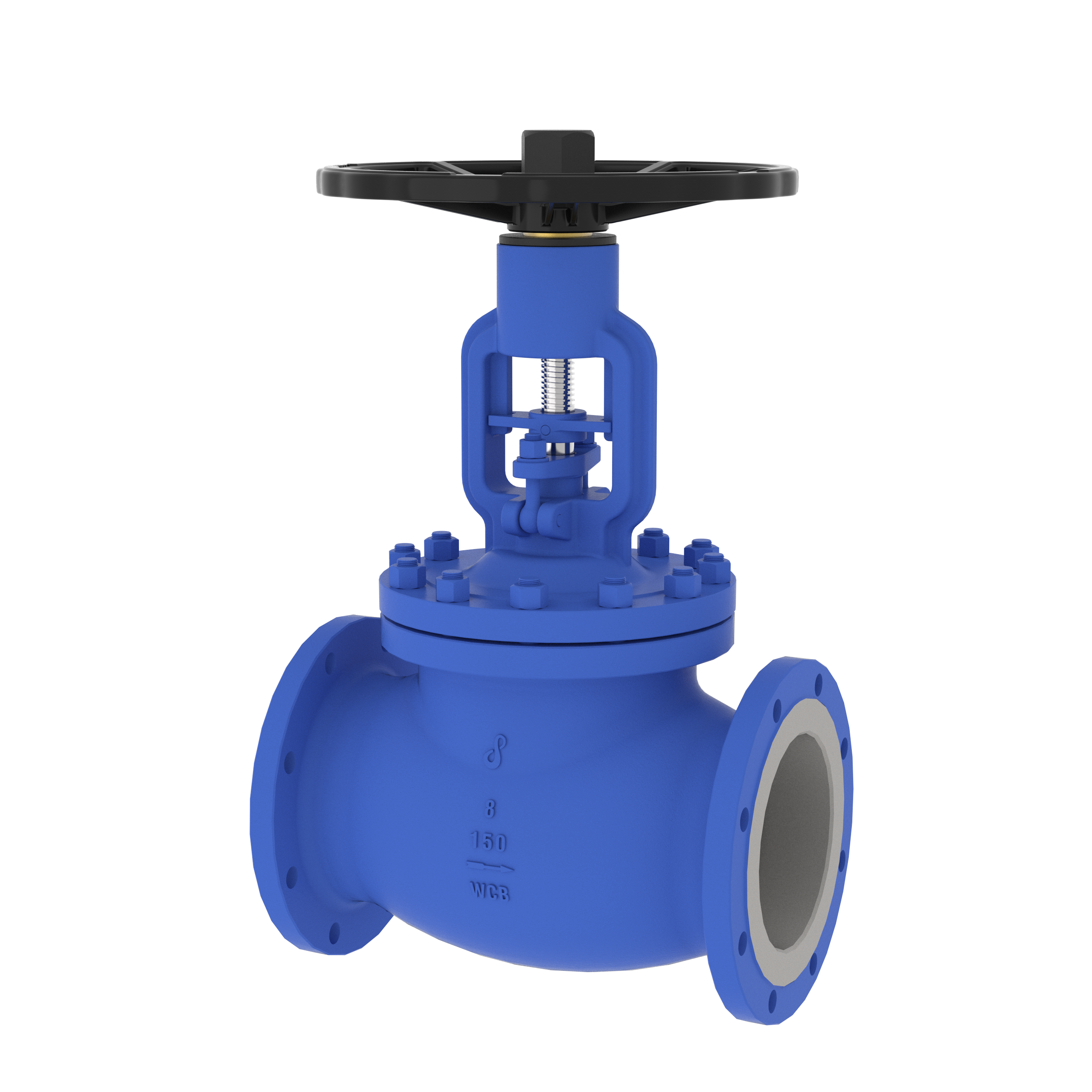

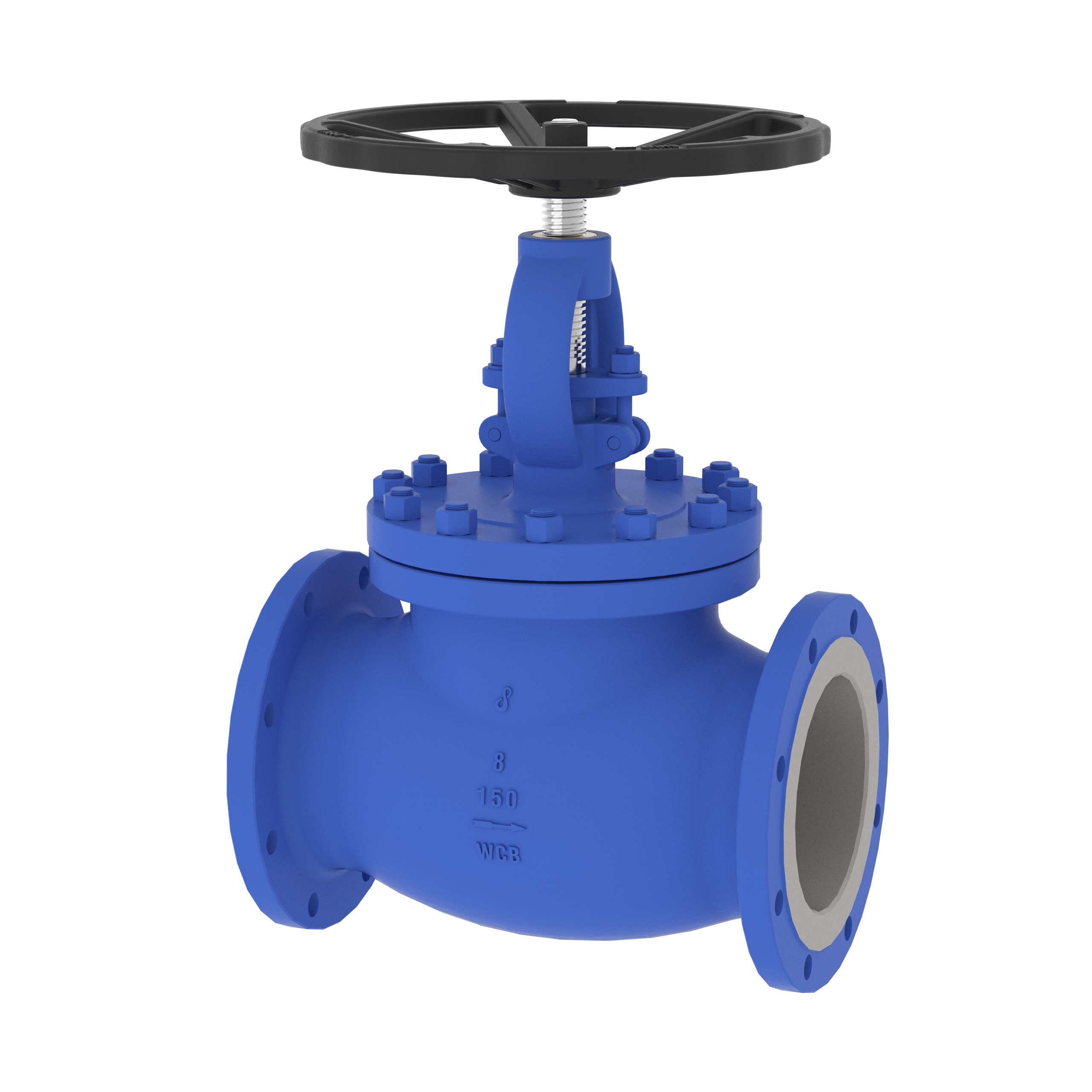

ANSI Bellow Globe Valve

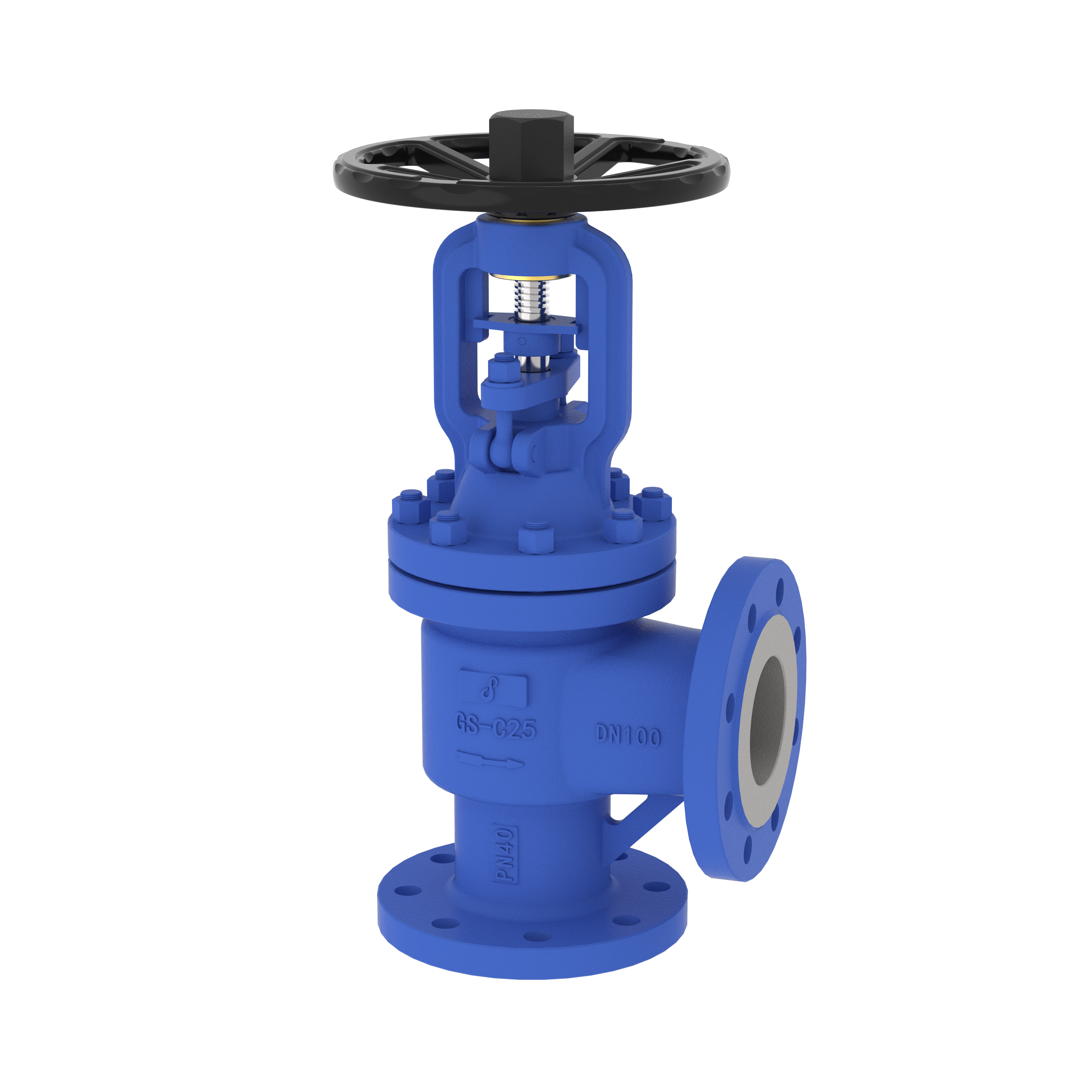

Angle Type Bellow Globe Valve

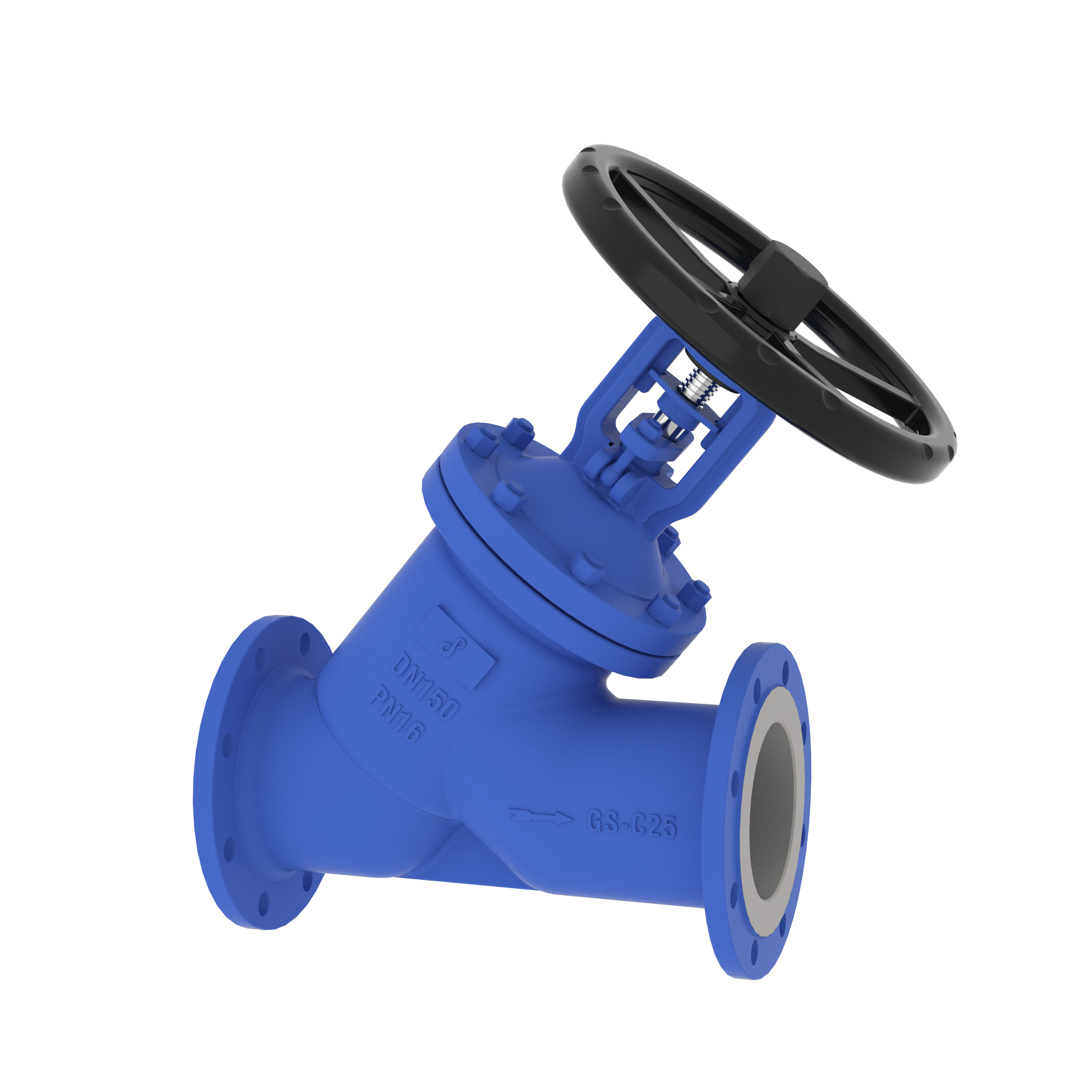

Y Type Bellow Globe Valve

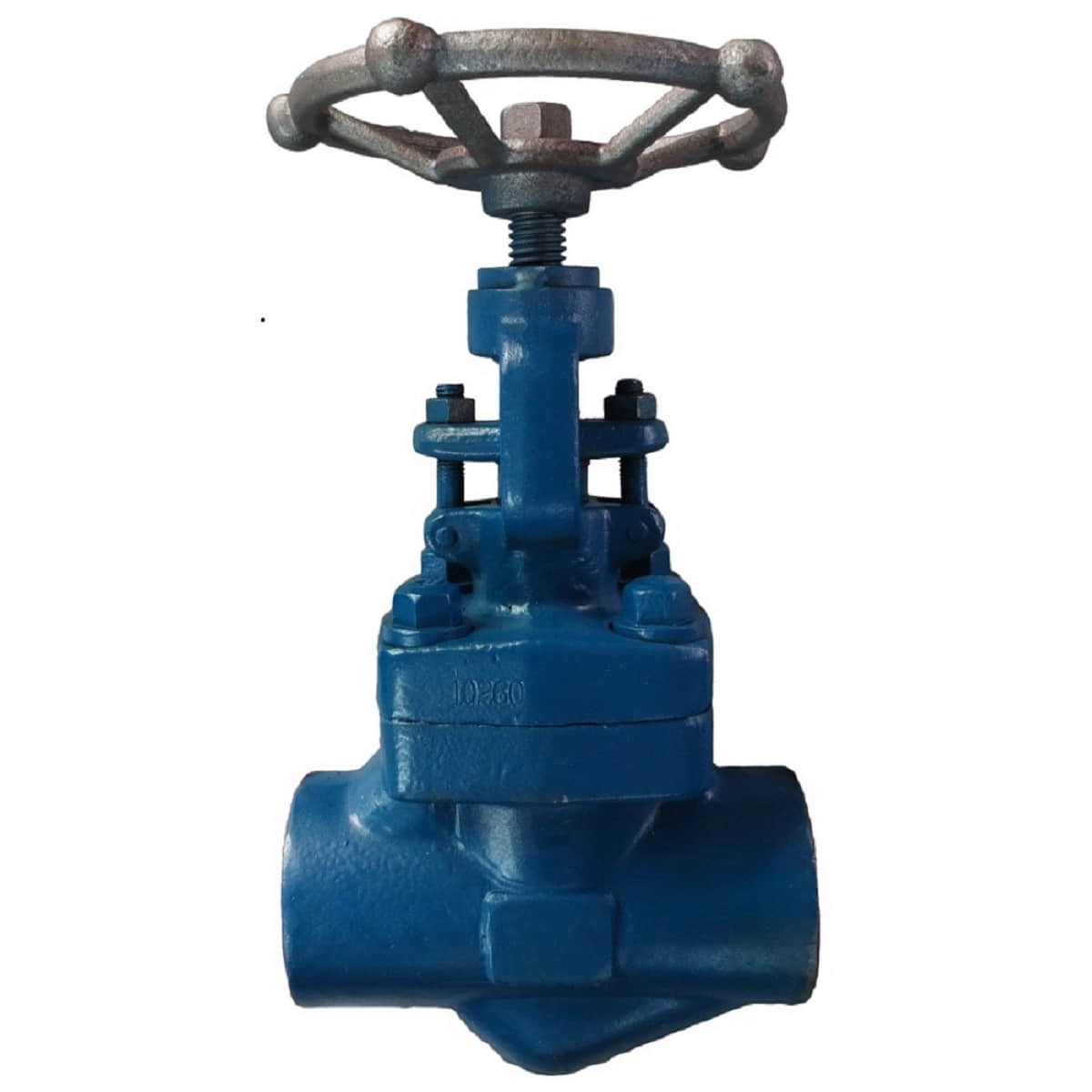

Forged Steel Bellow Globe Valve
Industrial Isolation Valves

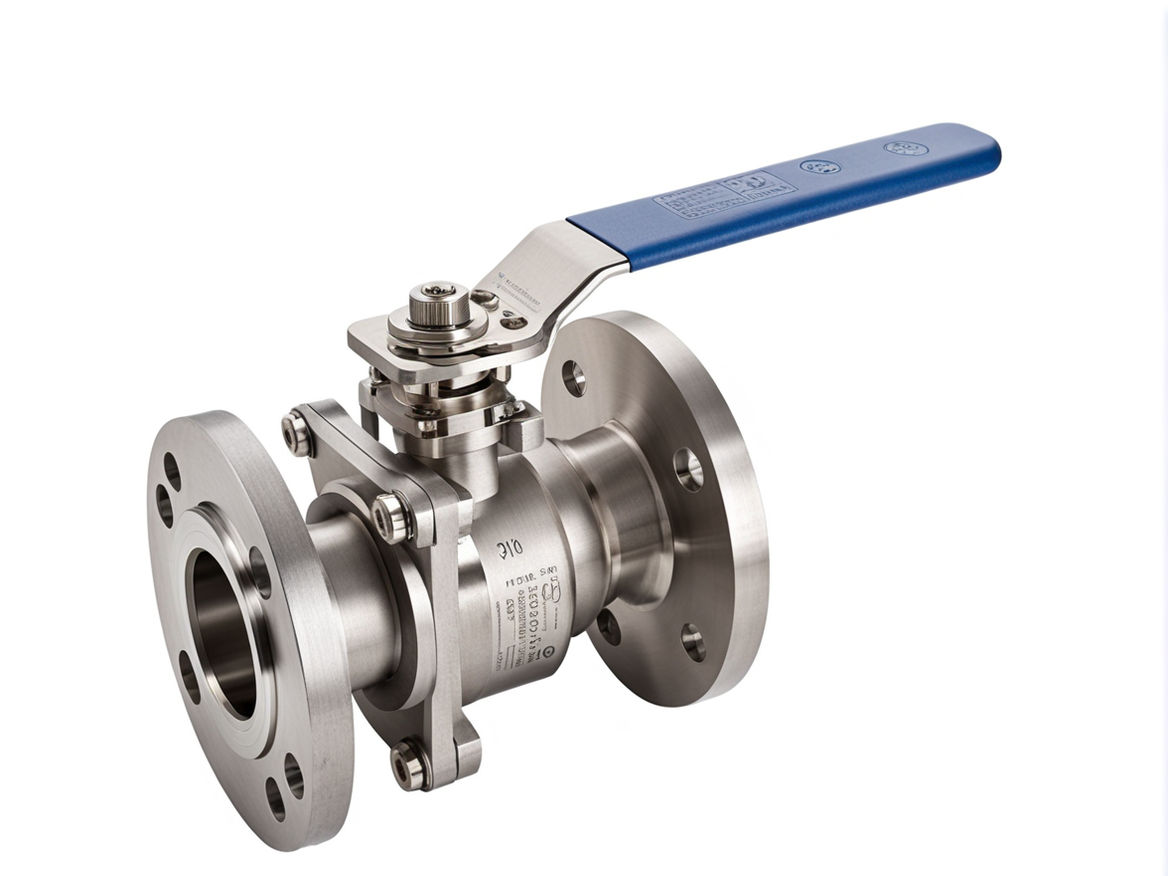

Ball Valve
Technical specification
Design standard: ASME B16.34, API 608, API 6D
Fire safe: API 607, ISO 10497
Face to face dimension: ASME B16.10
Flanged ends: ASME B16.5, ASME B16.47
BW ends: ASME B16.25 Test & inspection: API 598, API 6D
Pipe Line Anciliaries

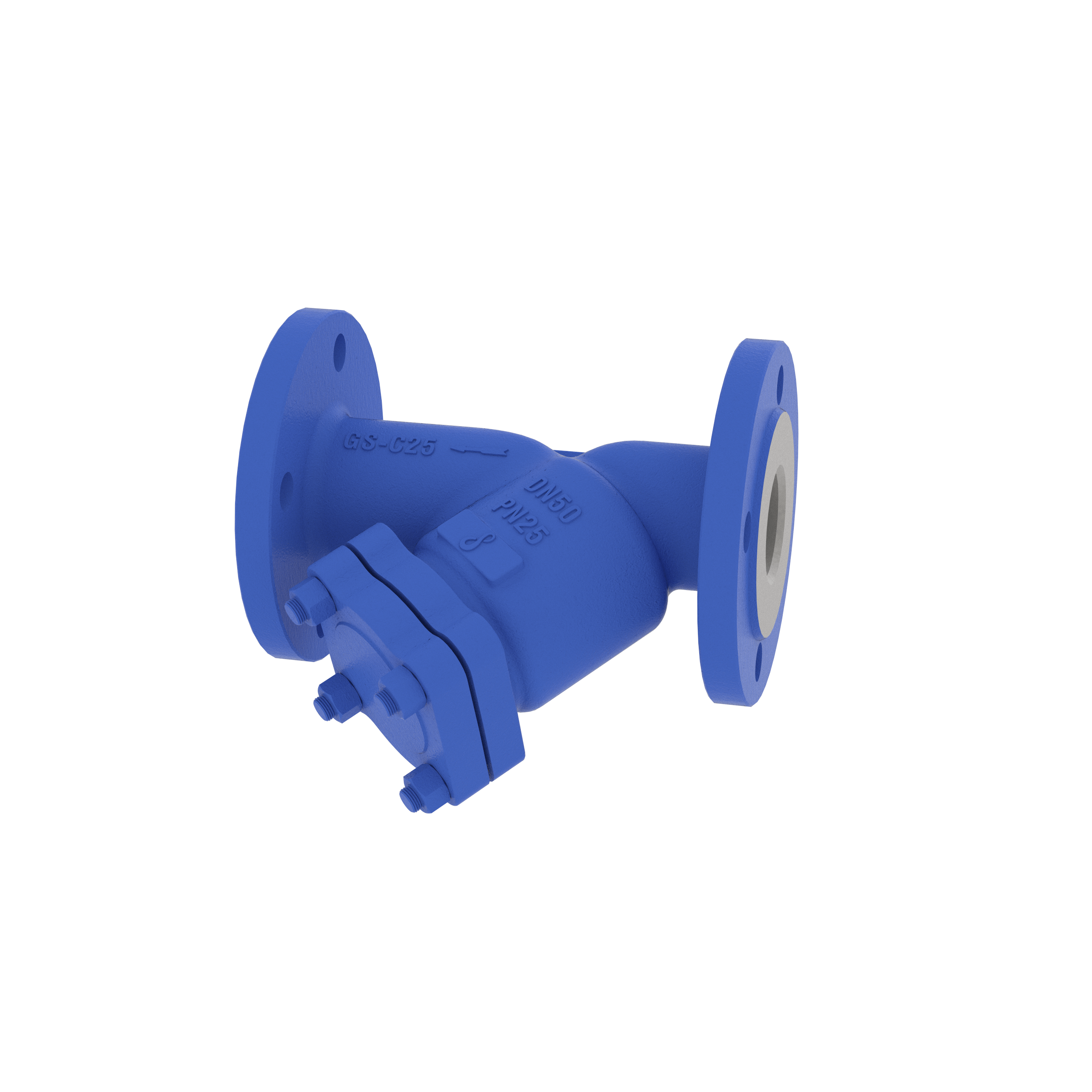

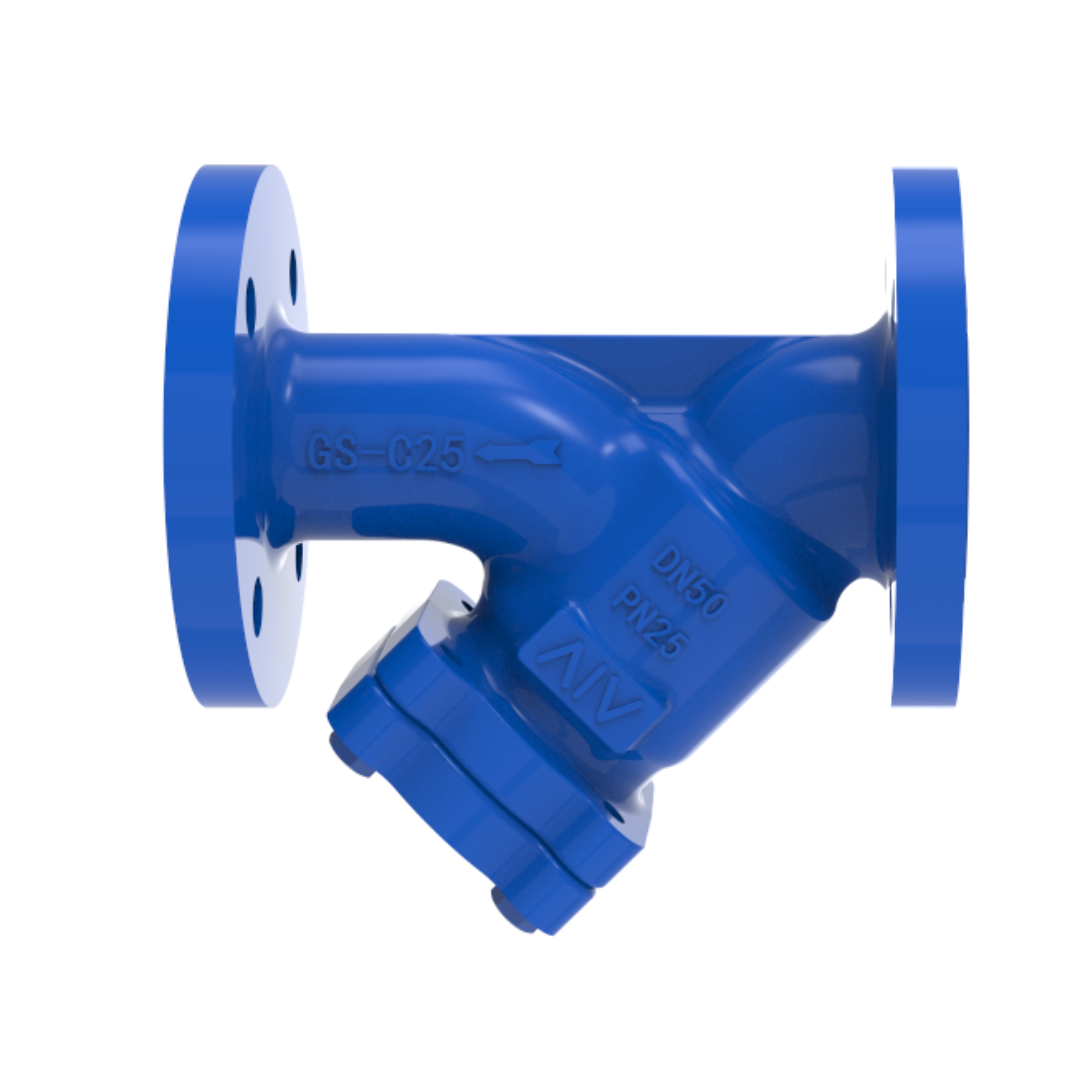

Y-type Strainer
Design standard: 3356
Face to face dimension: 3202
Flanged ends: 2543-2545
Test & inspection: 3230
Hot oil system, steam system, hot and cold water system etc.
Advantages:
1. Y type strainer is used to separate the impurity of media. It can protect other equipment for a regular service.
2. Stainless steel filter traps make a better performance and corrosion-resistance.
3. Maintenance is easy. All you need is just to clean the filter traps.

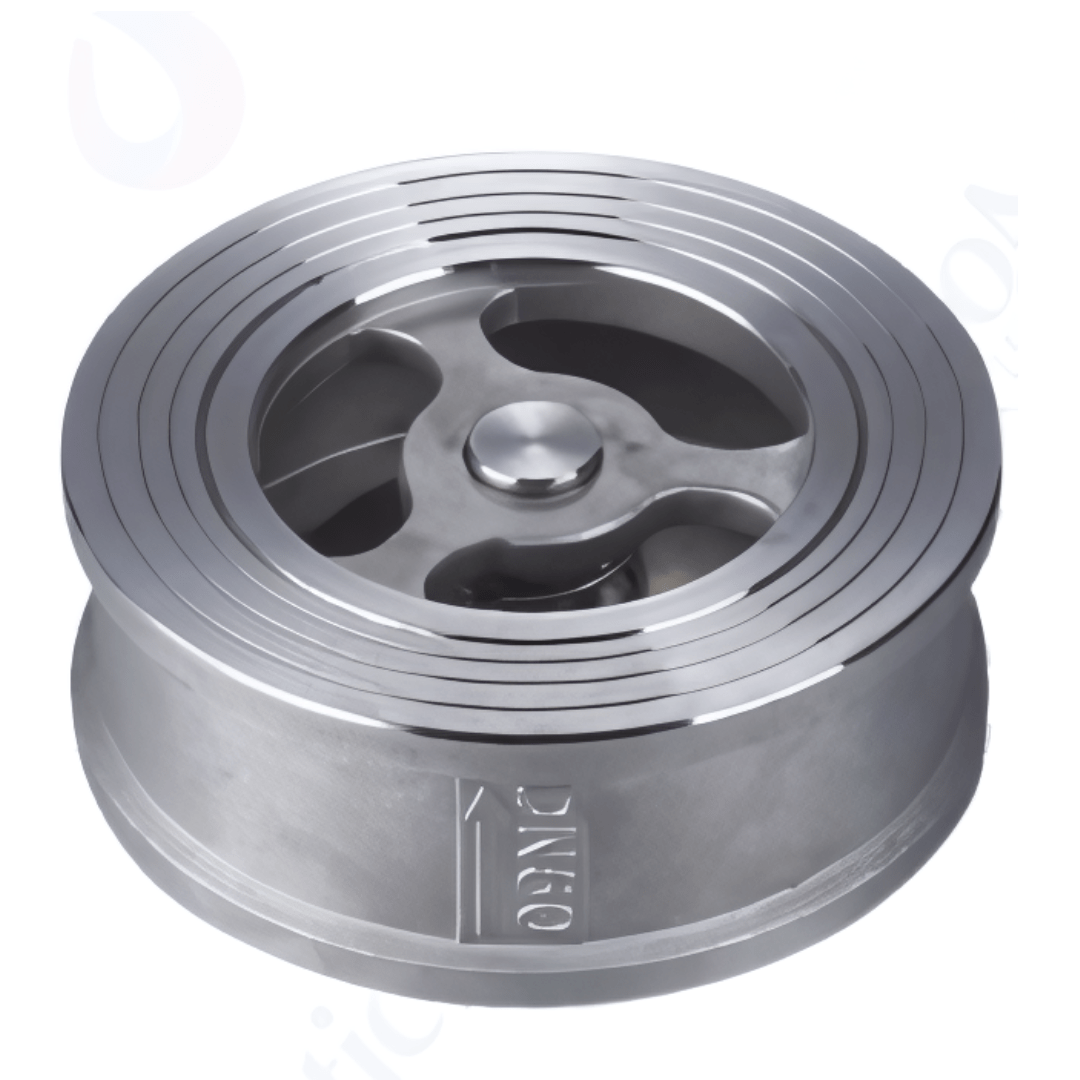

Lift / Wafer Check Valve
Design standard: 3356
Face to face dimension: 3202
Flanged ends: 2543-2545
Test & inspection: 3230
Hot oil system, steam system, hot and cold water system etc.
1. Lift check valve is self-sealing valve. The disc can be acted to the flow which can avoid against the media flow back.
2. The disc with spring can keep the valve work in any direction.
3. Reasonable structure, reliable sealing, excellent performance and attractive appearance.

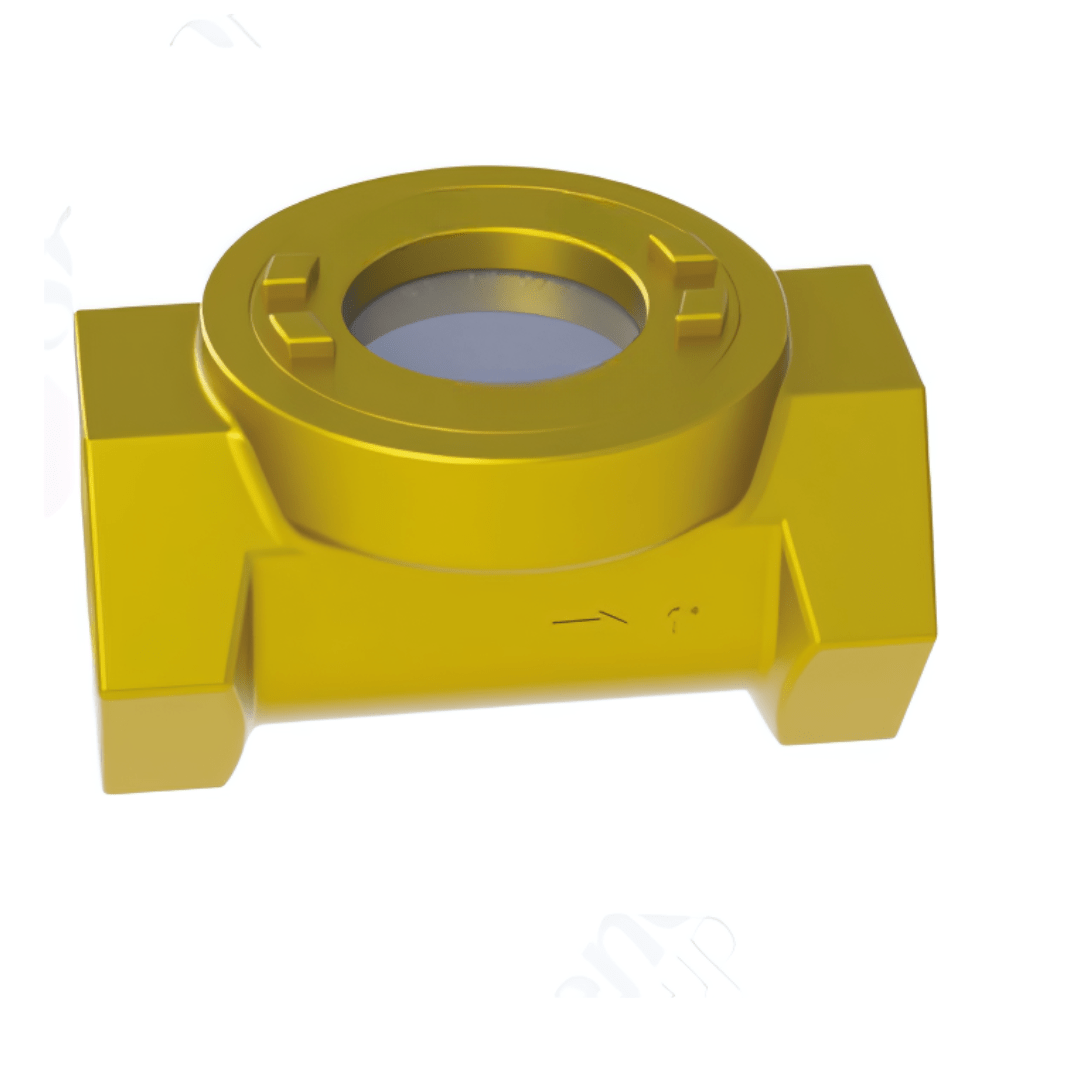

Sight Glass
Body : Ductile Iron GGG 40.3
Cover : Ductile Iron GGG 40.3
Internals and float : Stainless Steel AISI 304
Connection Types: Flanged and threaded
Can be used vertically as the inlet to stay up the top and the outlet to remain at the bottom. It can also be installed horizontally from right to the left or opposite way.
When condensate reaches the steam trap, the float rises and open the main valve and discharges the condensate. As soon as the condensate discharge is completed and the steam reached into the trap, the float goes down and closes the valve. Condensate level in SK55L can be seen through the sight glass.

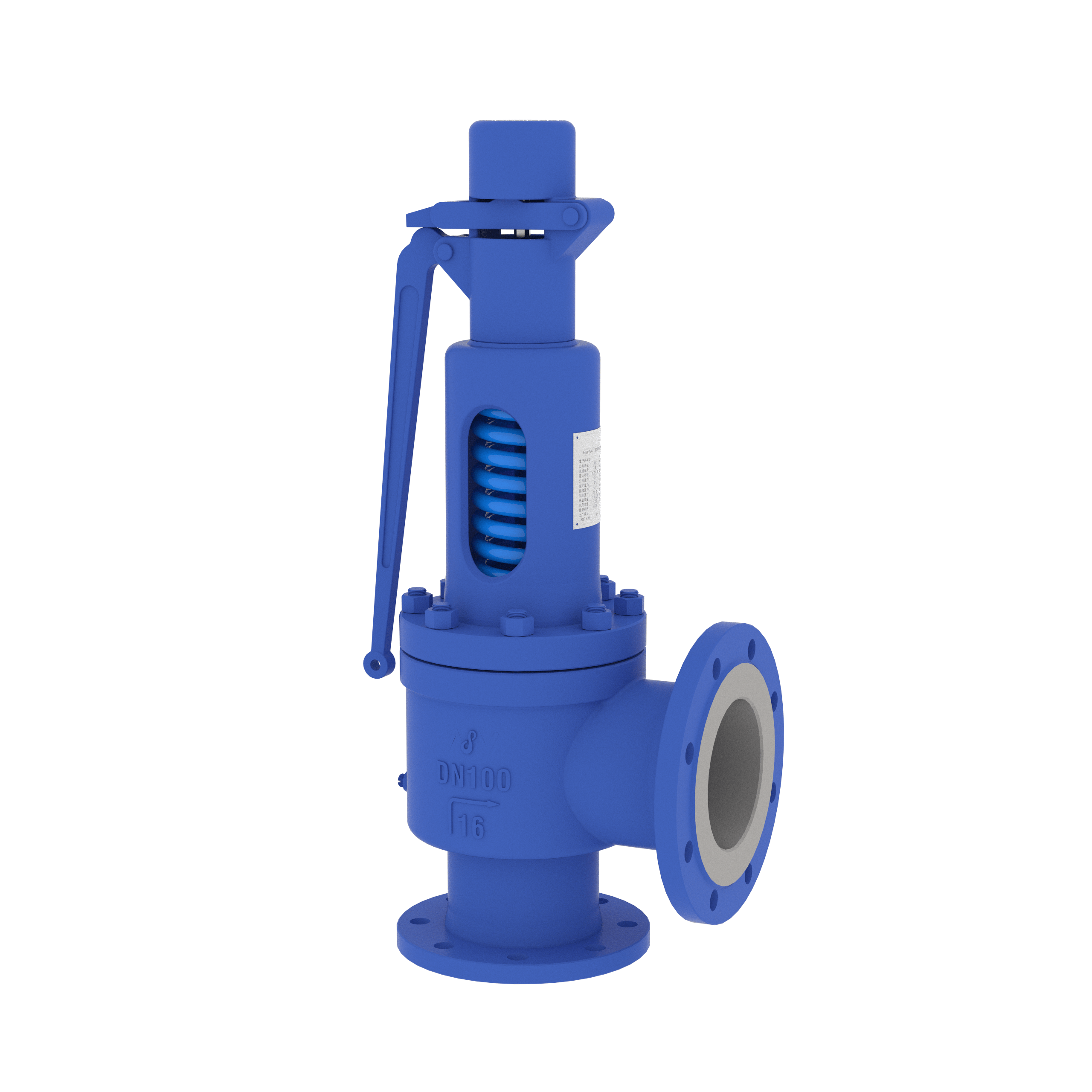

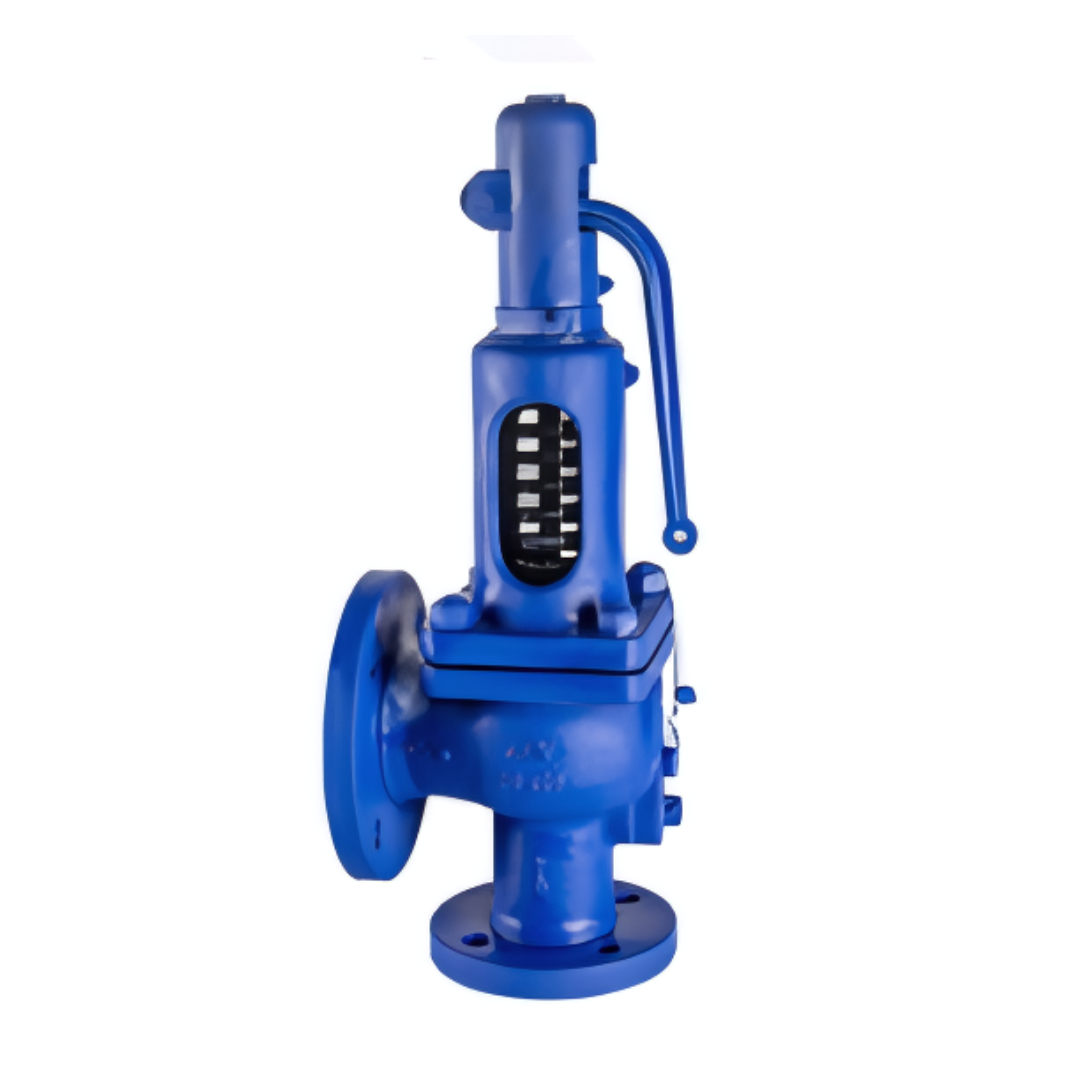

Safety Valve
- Nominal Pressure: PN40 / PN16
- Nominal Diameter: DN20 – DN150 (Model 35.901/902/91/912), DN20 – DN100/150 (Model 55.901/911)
- Working Temperature: -10°C to 450°C (Carbon Steel), -60°C to 400°C (Stainless Steel)
- Flow Area Range: 254 mm² – 12,266 mm²
- Flange Standards: PN16 / PN40
🔹 Steam Systems
🔹 Thermal Oil Systems
🔹 Natural Gas Processing
🔹 Hot & Cold Water Systems
🔹 Industrial Pressure Vessels
✅ Automatic Overpressure Protection – Ensures system integrity by releasing excess pressure.
✅ Enhanced Equipment Safety – Prevents damage caused by sudden pressure spikes.
✅ Reliable Performance – Designed to meet German safety standards (3320, 3202, 2543-2545, 3230).
✅ Wide Application Range – Suitable for steam, hot oil, natural gas, and hot/cold water systems.
✅ Durable Construction – Available in carbon steel (1.0619+N) and stainless steel (1.4408) for corrosion resistance.
✅ Easy Installation & Maintenance – Compact design for seamless integration into existing pipelines.
Steam Traps

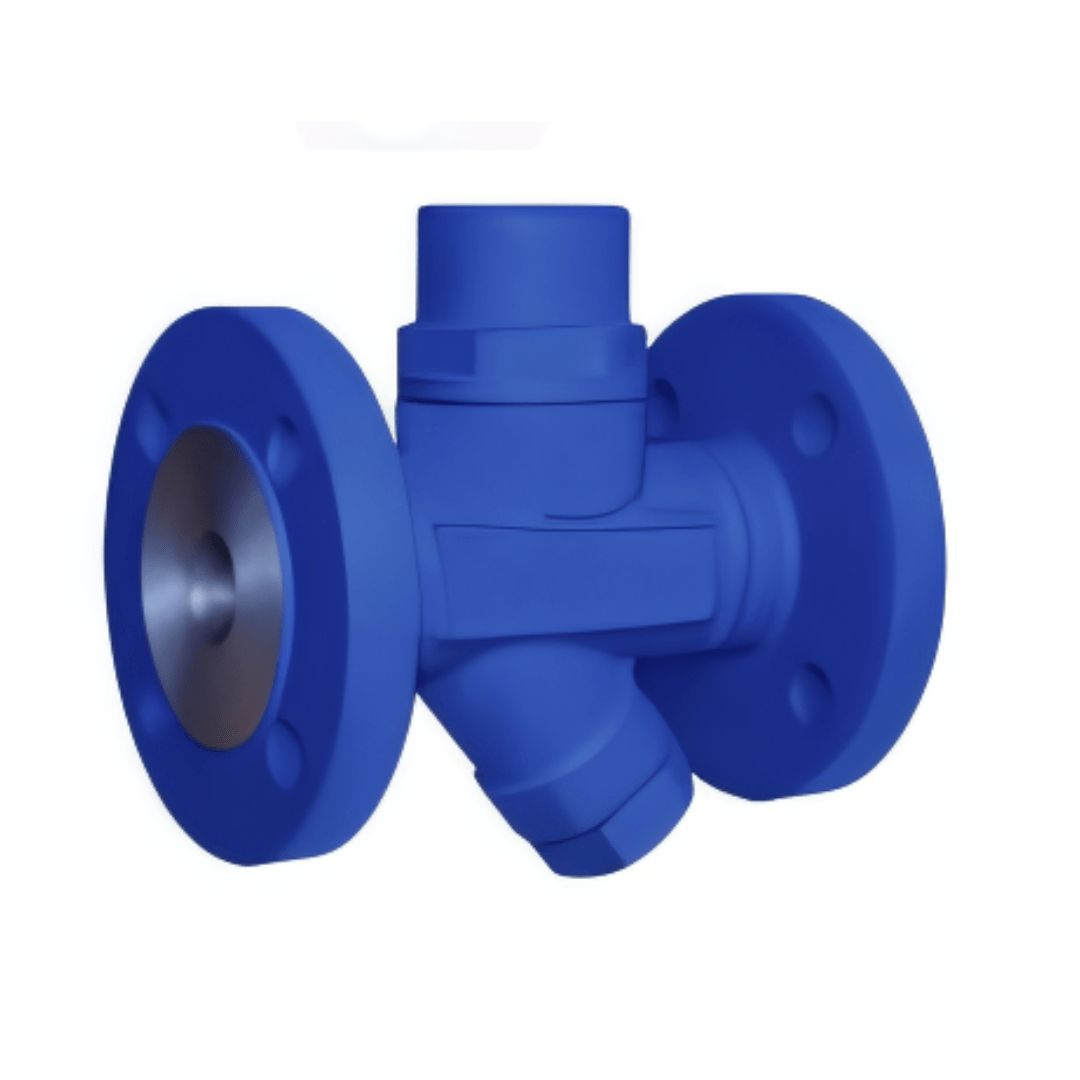

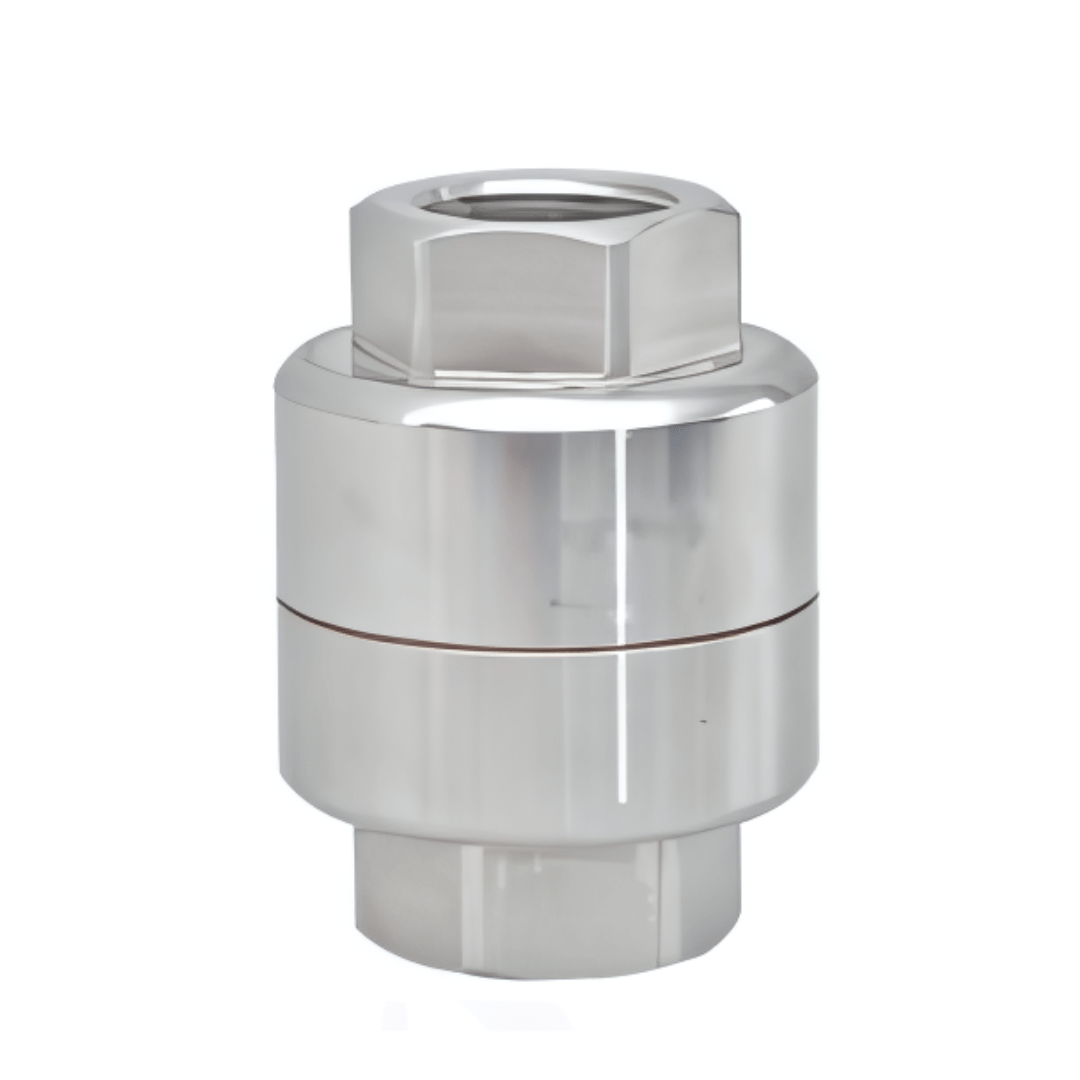

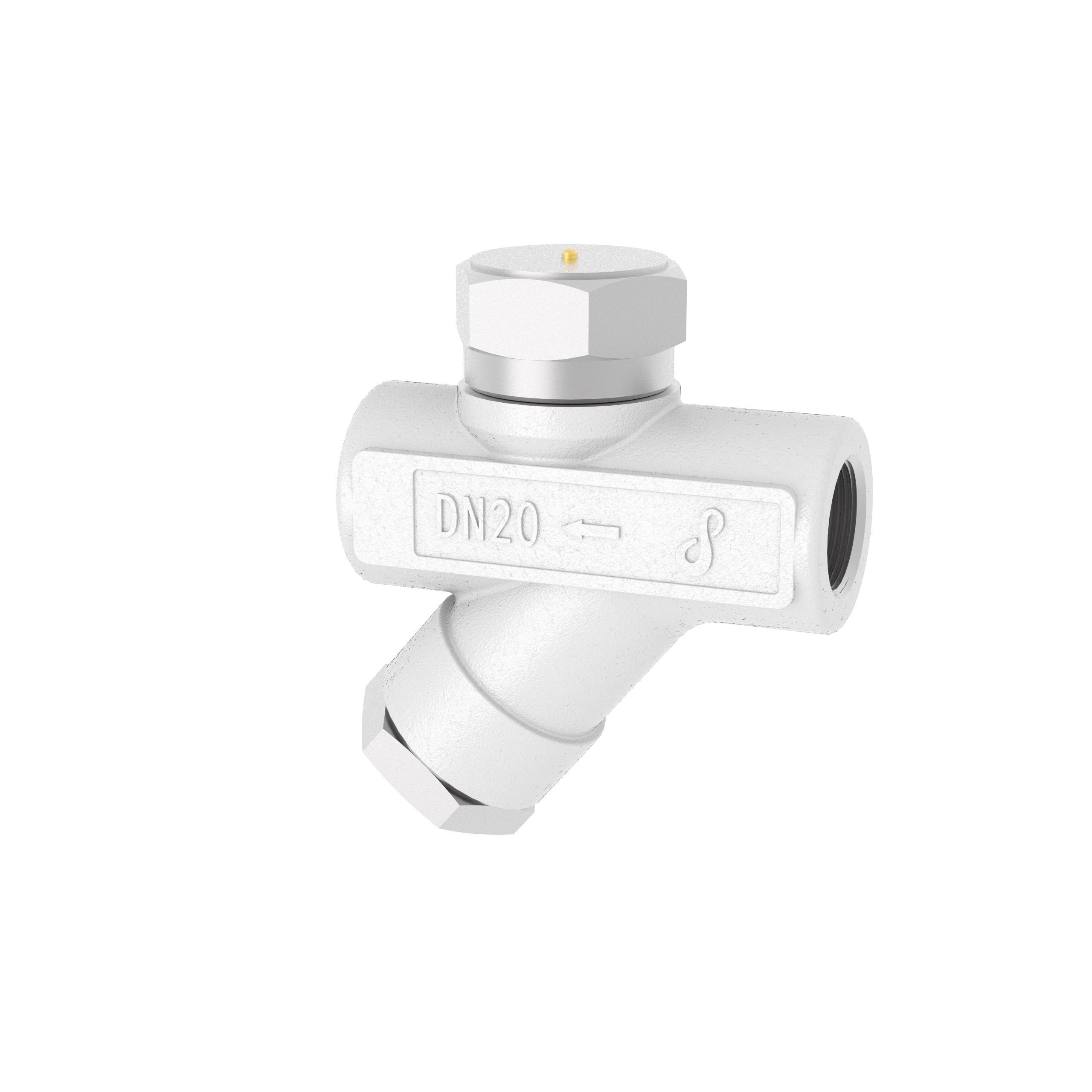

Thermodynamic Steam Traps
✅ Precision Machining & Good Sealing – Ensures high efficiency and tight closure to prevent steam loss.
✅ Hardened Stainless Steel Construction – Valve disc and seat provide long service life and corrosion resistance.
✅ Built-in Stainless Steel Strainer – Protects the trap from debris, reducing maintenance needs.
✅ Compact & Lightweight – Designed for easy installation and minimal footprint.
✅ Versatile Installation – Works in any orientation, lowering installation costs.
✅ Wide Operating Pressure Range – Eliminates the need for valve resizing when pressure conditions change.
✅ Low Maintenance – Only one moving part (stainless steel valve disc), reducing failure points.
🔹 Steam Main Lines & Branch Pipes
🔹 Heat Tracing Systems
🔹 Steel, Chemical, Automotive, and Paper Industries
🔹 Food & Beverage Processing
- Max Operating Pressure (PMO): 20 bar
- Max Operating Temperature (TMO): 300°C
- Sizes Available: DN15, DN20, DN25
- Connection Types: Screwed, Socket Welded, PN25 Flanged
Thermostatic Steam Traps
✅ Compact & Lightweight – Simple structure for easy installation and minimal space requirements.
✅ Versatile Installation – Can be installed horizontally or vertically to fit different system layouts.
✅ Automatic Pressure Adjustment – Adapts to fluctuating pressure conditions without manual intervention.
✅ Quick Start-Up Performance – The valve fully opens during start-up, allowing rapid discharge of air and non-condensable gases.
✅ Fail-Safe Design – Ensures the valve remains fully open in case of failure, preventing condensate buildup.
✅ Durable Stainless Steel Construction – Ensures long service life and corrosion resistance.
🔹 Steam Heating Pipelines
🔹 Heat Exchangers & Heat Sinks
🔹 Steam Coil Systems
🔹 Low Condensate Load Systems
- Max Operating Pressure (PMO): 21 bar
- Max Operating Temperature (TMO): 300°C
- Max Allowable Operating Temperature (TMA): 220°C @ 21 bar
- Available Sizes: DN15, DN20, DN25
- Connection Types: Screwed, PN25, Flanged
Bimetallic Steam Traps
Reducing flash steam losses. Energy Saving. Good air venting. High resistance against water hammer.
Tracing Lines, Turbines, Marine applications, Presses, Ovens
DN15-50
1/2″-2″
32 bar

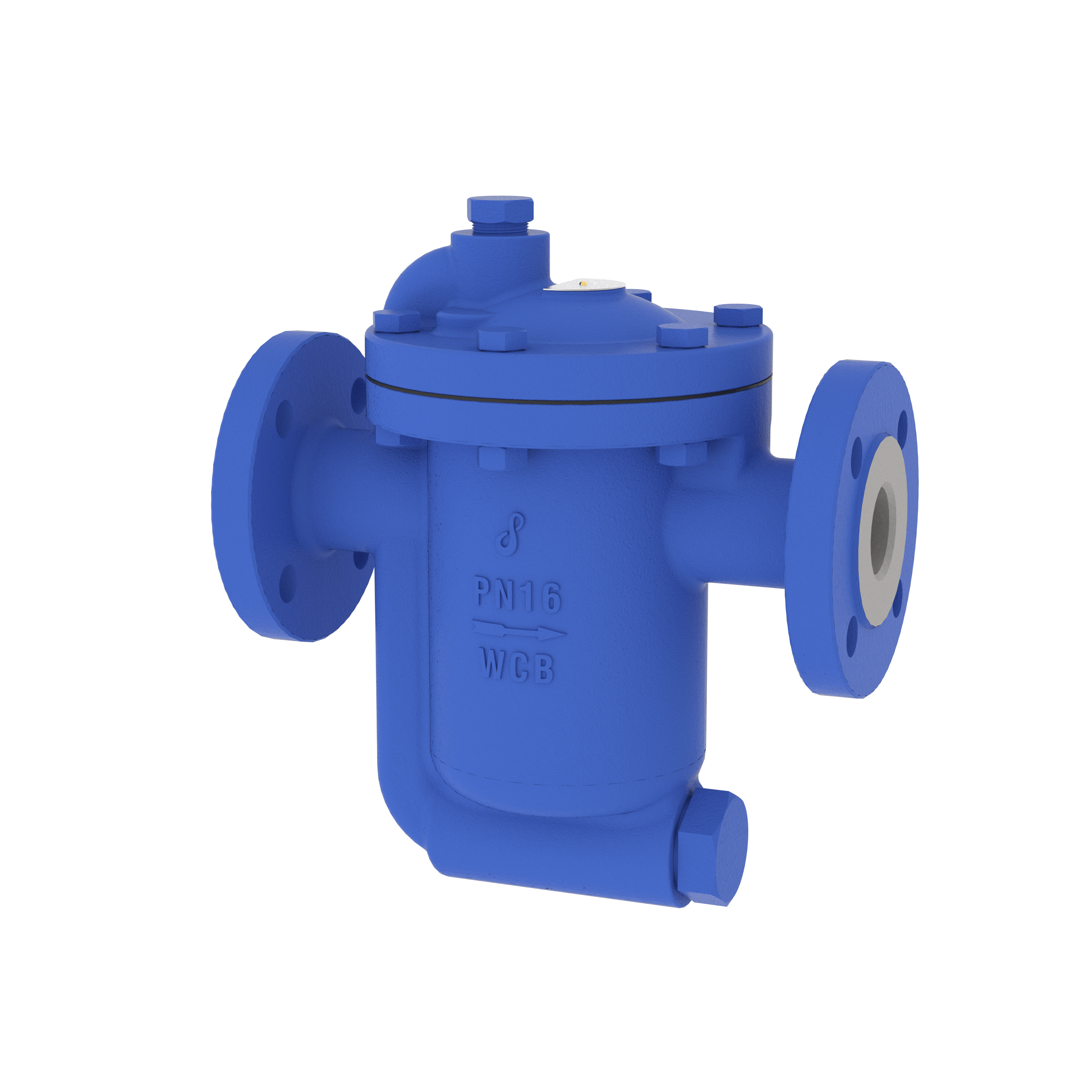

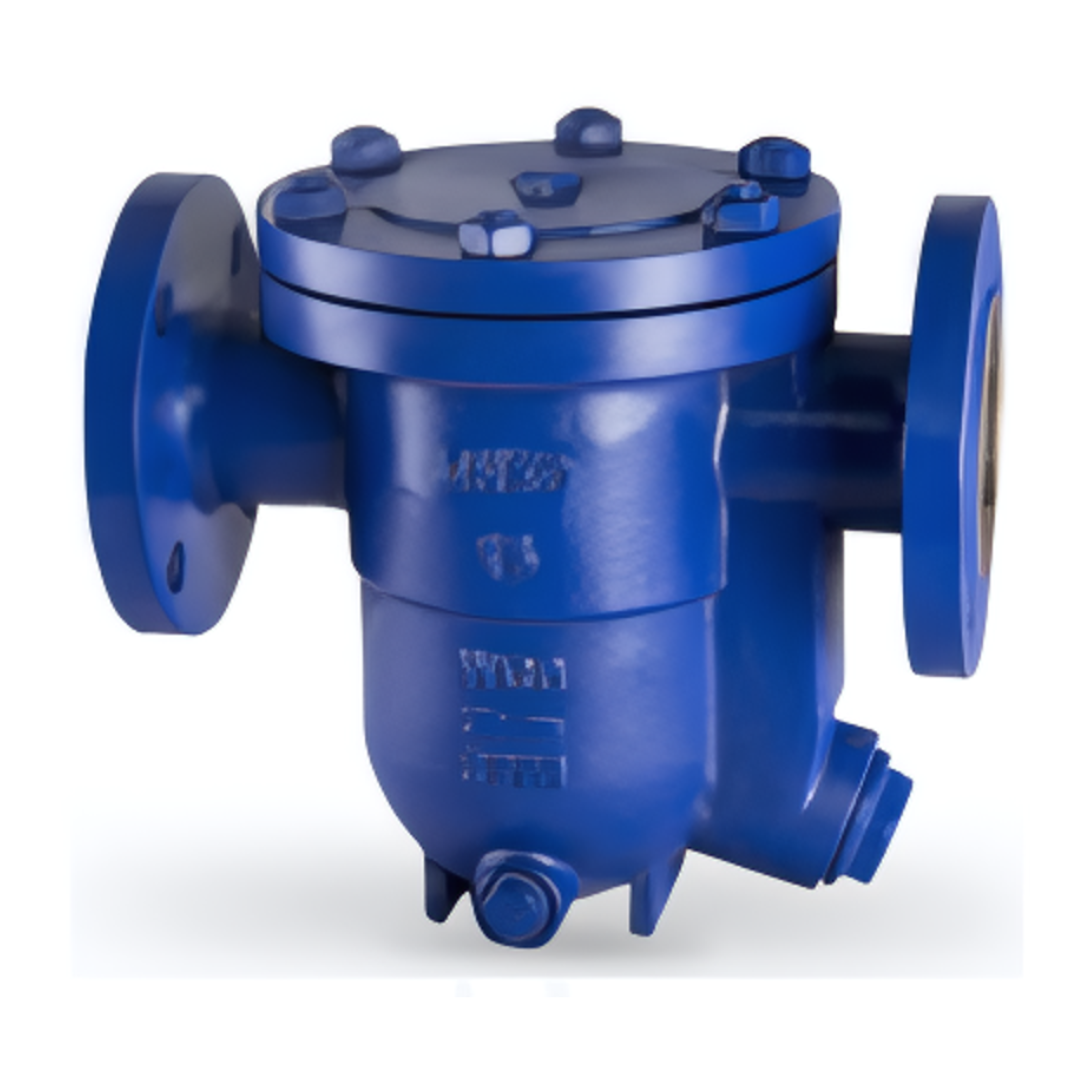

Inverted Bucket
✅ Highly Durable Construction – Made from alloy steel with a hardened valve core and seat for extended service life.
✅ Built-in Stainless Steel Filter – Reduces installation costs and prevents debris accumulation.
✅ Resistant to Water Hammer – The open stainless steel bucket prevents deformation and ensures long-term reliability.
✅ Optional Built-in Check Valve – Enhances system efficiency and saves installation space.
✅ Low Failure Rate – Valve components are located at the top of the body, reducing the risk of impurity buildup.
✅ Versatile Connection Options – Available in screwed or flanged configurations for easy installation.
🔹 Steam Main Lines & Heat Tracing Systems
🔹 Boiler Sub-Cylinders & Steam-Water Separators
🔹 Jacketed Kettles & Heat Exchangers
🔹 Food & Beverage, Pharmaceutical, and Textile Industries
🔹 Tobacco, Steel, Paper, and Chemical Manufacturing
- Max Operating Pressure (PMO): 17 bar
- Max Operating Temperature (TMO): 230°C
- Sizes Available: DN15 – DN65
- Connection Types: Screwed, PN16, PN25, Flanged
- Models: SKLIB211, SKLIB214, SKLIB215, SKLIB216

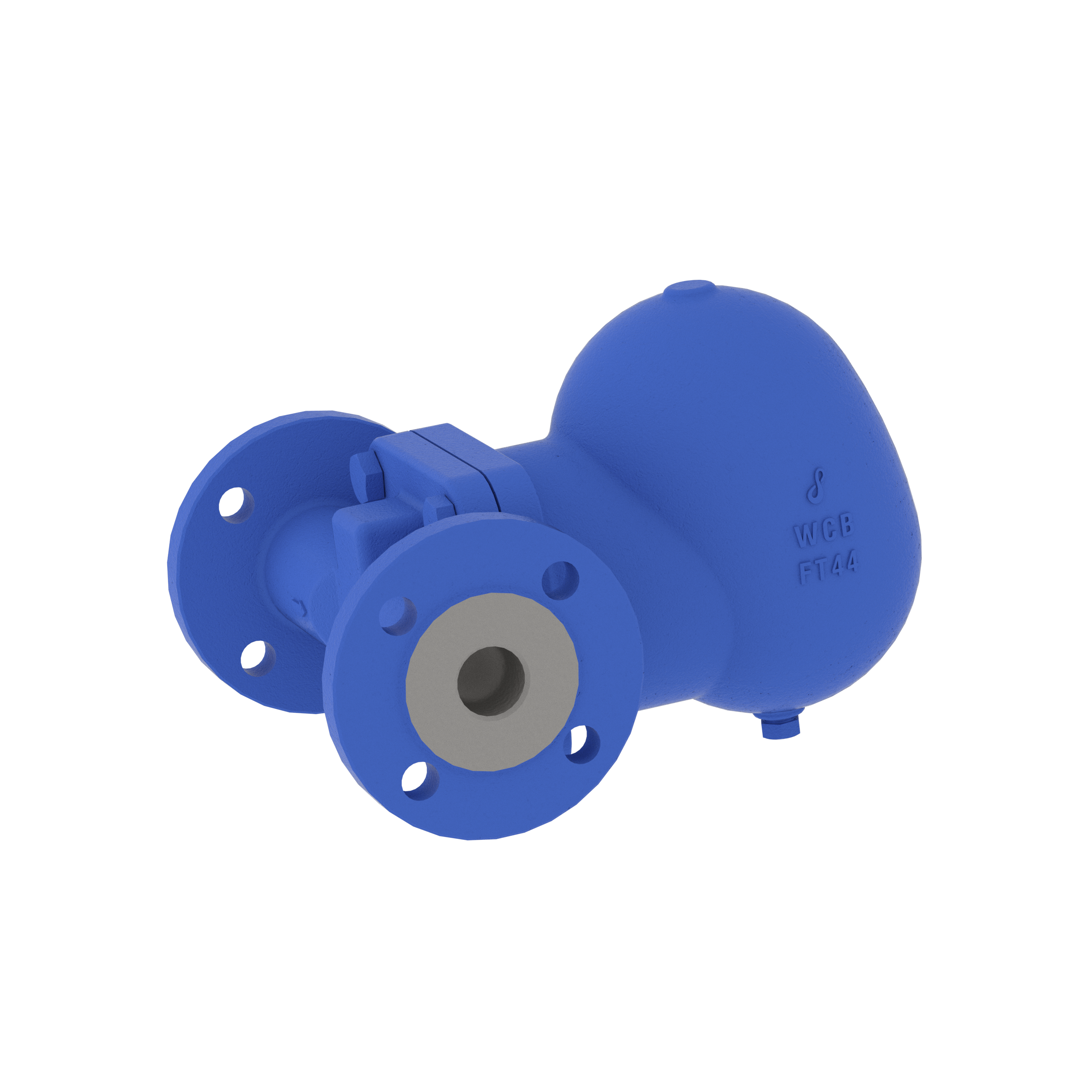

Ball Float
✅ Continuous Condensate Discharge – Ensures efficient system drainage without steam loss.
✅ Stainless Steel Internal Components – Provides corrosion resistance and durability.
✅ Built-in Thermostatic Exhaust Valve – Quickly removes air and non-condensable gases on startup.
✅ Anti-Water Hammer Design – Prevents internal damage caused by pressure surges.
✅ Stable Double-Seat Structure – Eliminates water seal loss due to ball float shaking.
✅ Handles High & Low Load Changes – Not affected by pressure fluctuations, making it highly adaptable.
🔹 Steam Main Lines & HVAC Systems
🔹 Heat Exchangers & Process Heaters
🔹 Industrial Sectors Including Food, Steel, and Chemicals
- Max Operating Pressure (PMO): 14 bar (SKLFT212), 32 bar (SKLFT218, SKLFT218HC, SKLFT218SHC)
- Max Operating Temperature (TMO): 300°C
- Max Allowable Operating Temperature (TMA): 220°C @ 14 bar, 240°C @ 32 bar
- Sizes Available: DN15 – DN100
- Connection Types: Screwed, PN16/PN25 Flanged, PN40 Flanged
Mechanical Pressure Reducing Valves

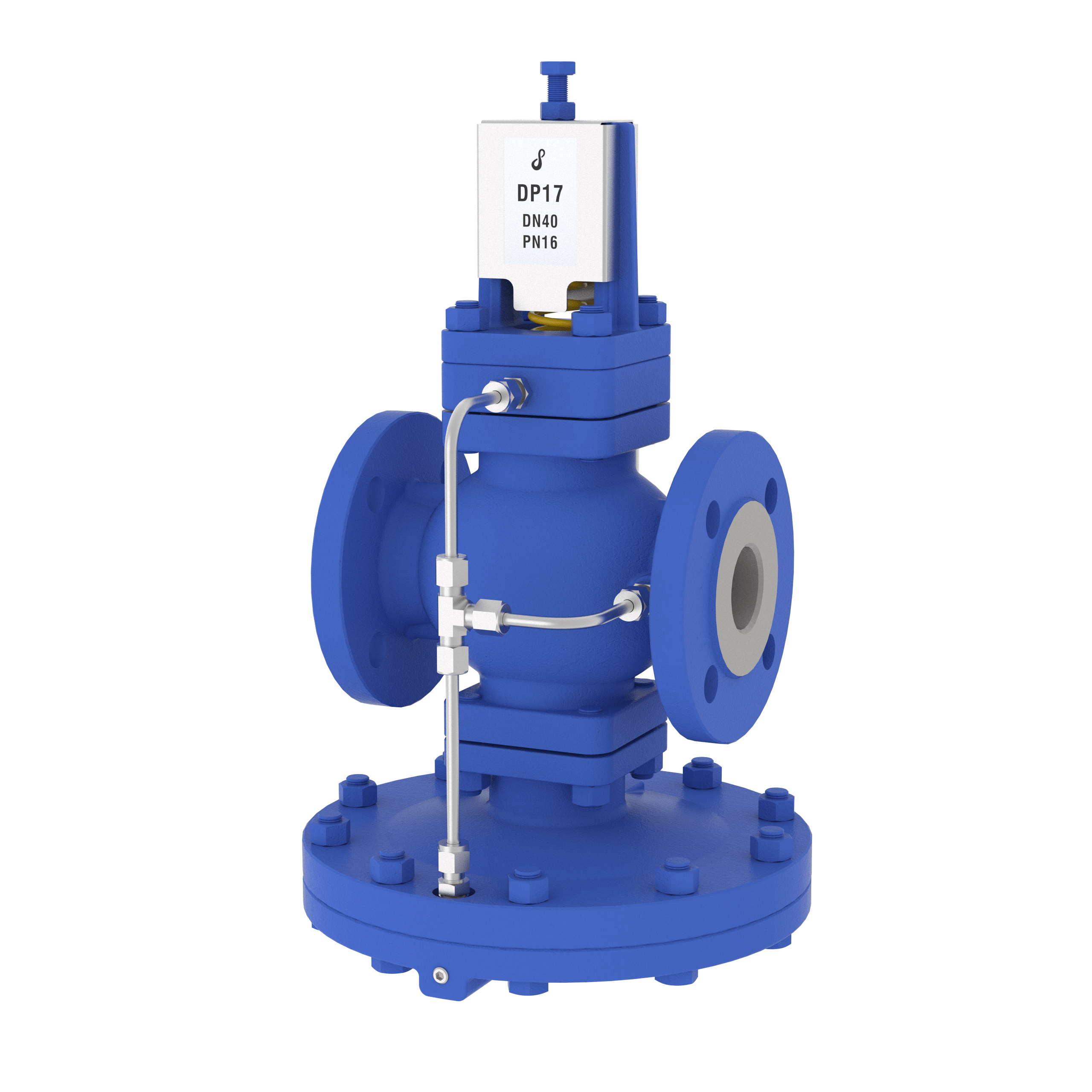

Pilot operated Pressure Reducing valve
✅ Continuous Condensate Discharge – Ensures efficient system drainage without steam loss.
✅ Stainless Steel Internal Components – Provides corrosion resistance and durability.
✅ Built-in Thermostatic Exhaust Valve – Quickly removes air and non-condensable gases on startup.
✅ Anti-Water Hammer Design – Prevents internal damage caused by pressure surges.
✅ Stable Double-Seat Structure – Eliminates water seal loss due to ball float shaking.
✅ Handles High & Low Load Changes – Not affected by pressure fluctuations, making it highly adaptable.
- Max Operating Pressure (PMO): 14 bar (SKLFT212), 32 bar (SKLFT218, SKLFT218HC, SKLFT218SHC)
- Max Operating Temperature (TMO): 300°C
- Max Allowable Operating Temperature (TMA): 220°C @ 14 bar, 240°C @ 32 bar
- Sizes Available: DN15 – DN100
- Connection Types: Screwed, PN16/PN25 Flanged, PN40 Flanged
🔹 Steam Main Lines & HVAC Systems
🔹 Heat Exchangers & Process Heaters
🔹 Industrial Sectors Including Food, Steel, and Chemicals

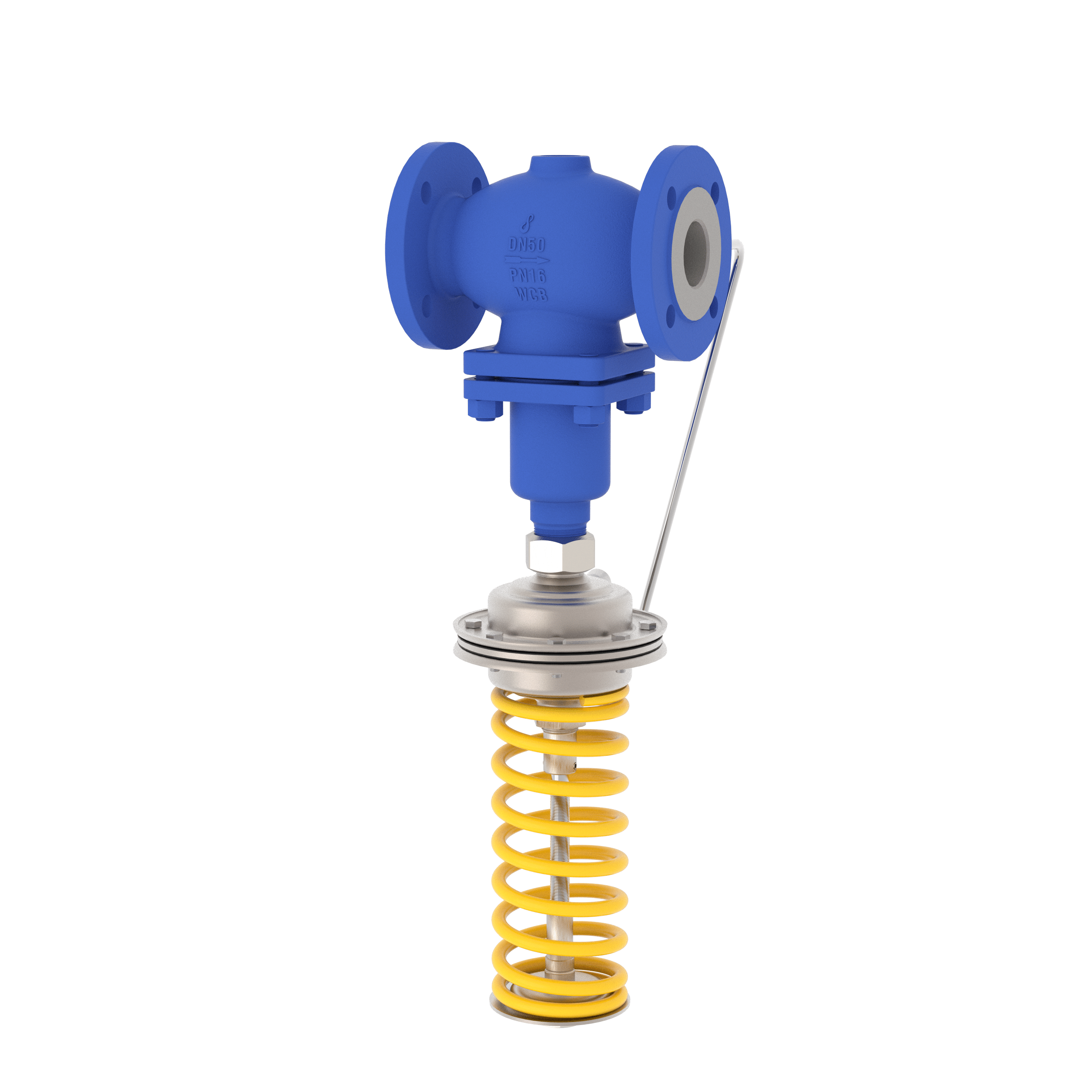

Self-Acting Pressure reducing Valve
Diaphragm-controlled spring-loaded and balanced proportional control valve for a broad selection of universal applications. The outlet pressure required is balanced across the control unit by the force of the valve spring (set pressure). As the outlet pressure rises above the set pressure using the adjusting screw, the valve cone moves around towards the seat and the volume of media is reduced. As the outlet pressure drops, the valve control orifice increases; when the pipeline is depressurised, the valve is open. Rotating the adjusting screw clockwise increases the set outlet pressure.
Control Valves

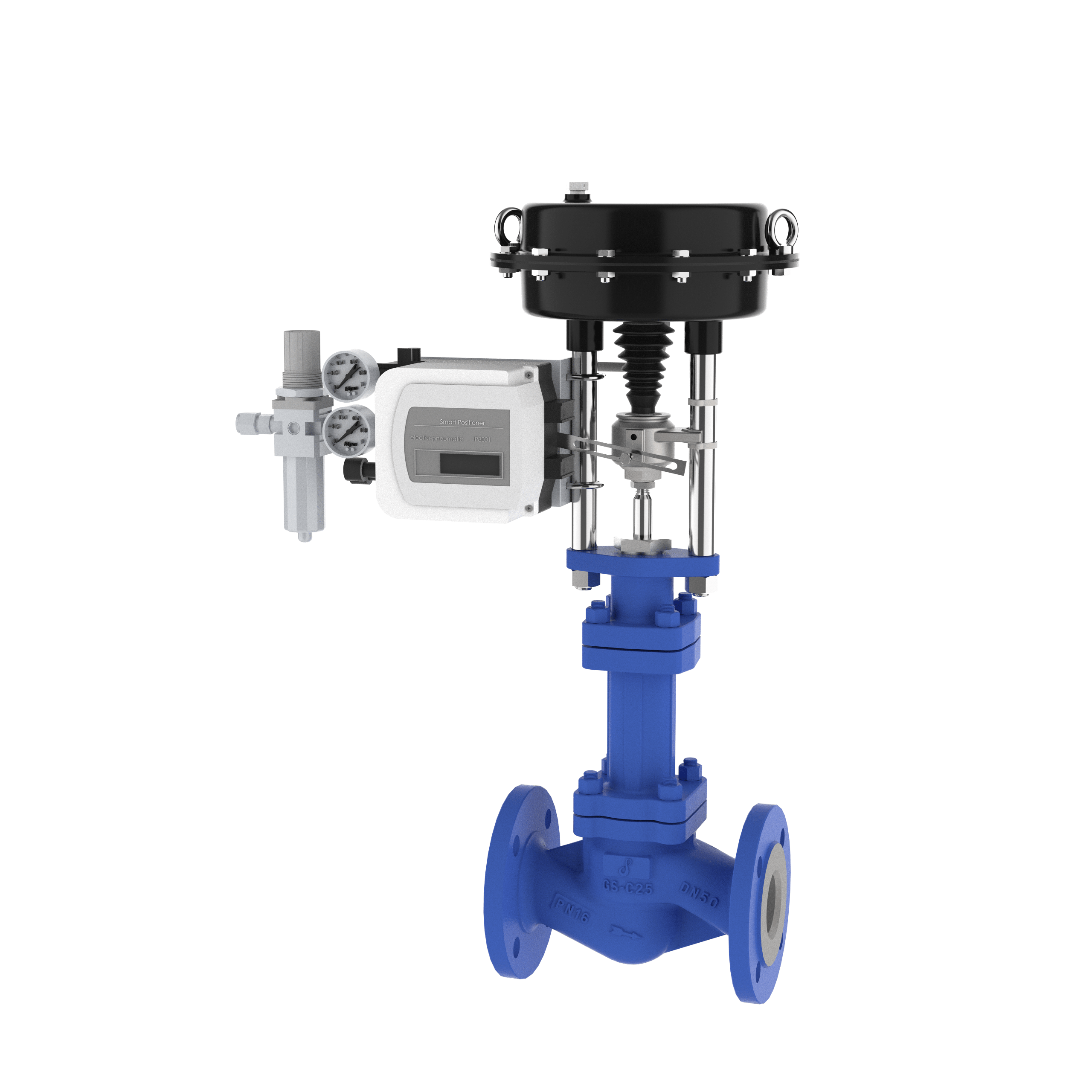

Punematic Actuators
Multi-spring, compact actuators.
Rotary diaphragm with good enhancing
features.
Can choose a different spring closing force.
Can be equipped with emergency handwheel.
Design standard: DIN.ANSI, GB
Face to face dimension: DIN, ANSI, GB
Flanged ends: DIN, ANSI, GB
Test & inspection: DIN3230, API 598
Hot oil system, steam system, hot and cold water system etc.

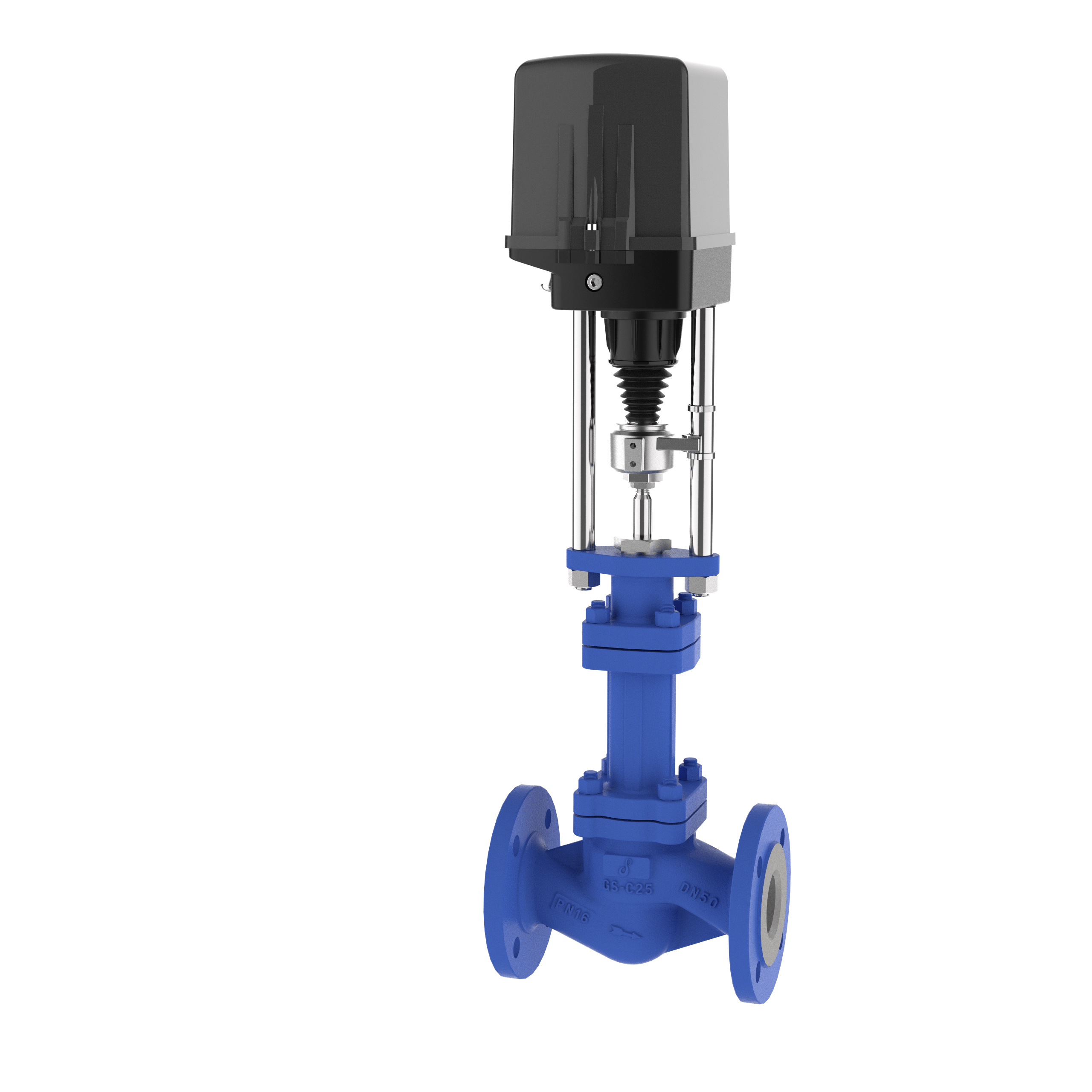

Electric Actuator Premio
To use synchronous motor to control precisely. With standard 2 torque switch and 1 limit switch. To adopt technology sealed electronic components and it has good shock resistance. High protection class Lp65. Be connected with various types of system.
High strength body and applies to every high load condition. Long distance design and control of high precision, it can be up to 50:1.
Provide a variety of forms of stem seal. Maintenance free. Optional threaded seat. It can reduce KVS value, which can up to 5 times.
With standard travel indicator.
Optional bellow seal.
Optional V-type/squirrel-cage valve head.
Condensate Pump

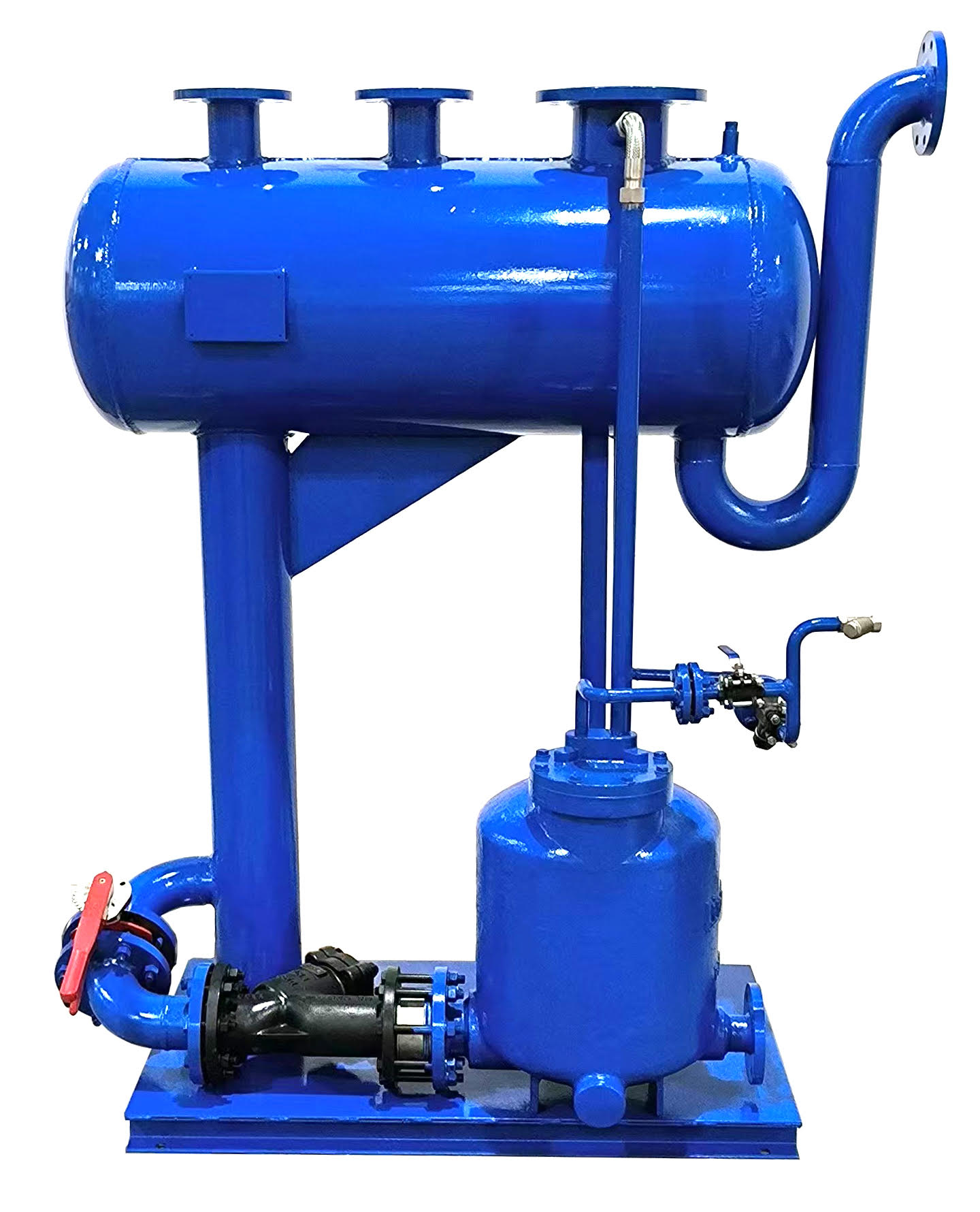

Mechanical Condensate Recovery unit
- Click on labelled components to view more details
Key Features & Benefits:
✅ No External Power Required – Runs on steam or compressed air, reducing energy consumption.
✅ No Cavitation Issues – Ensures smooth operation even at high condensate temperatures.
✅ Compact & Space-Saving – Eliminates the need for a separate water collection tank.
✅ Durable Construction – Features a cast steel body and stainless steel internal components for long-lasting performance.
✅ Corrosion-Resistant – Equipped with an alloy steel compression spring for extended life.
✅ Explosion-Proof Design – No static electricity or sparks, making it safe for hazardous environments.
✅ Cost-Saving Solution – Reduces water treatment costs, boiler blowdown, and fuel consumption while recovering heat energy.
✅ Flexible Installation – Supports both open and closed condensate recovery systems for different operational needs.
Technical Specifications:
- Max Operating Pressure (PMO): 13.8 bar
- Max Operating Temperature (TMO): 198°C
- Available Sizes & Flanges: DN80, DN50, DN25
- Configuration: Single Pump Unit / Double Pump Unit / Pump & Steam Trap Combination
Applications:
🔹 Industrial Steam Systems
🔹 Thermal Oil Systems
🔹 Boiler Condensate Recovery
🔹 Chemical & Petrochemical Plants
🔹 Food & Beverage Processing
