Thermostatic Steam Traps

The SKLTSV Thermostatic Steam Trap by Spenomatic Energy Solutions is an advanced steam trap designed for precise condensate discharge and efficient steam system operation. It automatically adjusts to changing working pressures, ensuring optimal energy savings and performance.

Thermostatic Steam Traps for industrial sites in Kenya

Key Features & Benefits:

✅ Compact & Lightweight – Simple structure for easy installation and minimal space requirements.
✅ Versatile Installation – Can be installed horizontally or vertically to fit different system layouts.
✅ Automatic Pressure Adjustment – Adapts to fluctuating pressure conditions without manual intervention.
✅ Quick Start-Up Performance – The valve fully opens during start-up, allowing rapid discharge of air and non-condensable gases.
✅ Fail-Safe Design – Ensures the valve remains fully open in case of failure, preventing condensate buildup.
✅ Durable Stainless Steel Construction – Ensures long service life and corrosion resistance.

Technical Specifications:

Max Operating Pressure (PMO): 21 bar
Max Operating Temperature (TMO): 300°C
Max Allowable Operating Temperature (TMA): 220°C @ 21 bar
Available Sizes: DN15, DN20, DN25
Connections: Flanged (DIN, ASME), Screwed (BSP,NPT)
Contact us for custom connections

Applications:

🔹 Steam Heating Pipelines
🔹 Heat Exchangers & Heat Sinks
🔹 Steam Coil Systems
🔹 Low Condensate Load Systems

Refer to the product catalog for more details.

steam traps in Kenya

Thermostatic Steam Traps for Kenya and African Industry

Thermostatic Steam Traps solutions in Kenya need to match the realities of local steam, process, and utility systems while remaining dependable across wider African industrial sites. Built around German quality expectations, the details below combine precise engineering, durable materials, efficient operation, and practical maintenance guidance for teams comparing steam traps Kenya suppliers, steam traps Africa applications, and long-life Thermostatic Steam Traps performance.

Thermostatic Steam Traps with German quality standards for African process plants

steam traps in Kenya

STEAM SYSTEM FUNDAMENTALS

Steam Traps
Why we need them, the main types, their pros & cons, and how to select the right trap for each application
Includes animated operation
(GIFs play in PowerPoint / Microsoft 365)

Steam Traps solution for Kenya steam and process systems

steam traps across Africa

THE PROBLEM

Why Do We Need Steam Traps?
As steam gives up its latent heat it condenses into water (condensate). Air and other non-condensable gases also collect in the system. A steam trap is an automatic valve that removes condensate, air and CO₂ — while holding back live steam.
Remove condensate
Water-logging chills the process, slashes heat transfer and causes uneven heating.
Prevent water hammer
Slugs of condensate driven by steam can hammer pipework, damaging fittings and risking injury.
Vent air & gases

Thermostatic Steam Traps application image for energy and manufacturing facilities in Africa

African steam traps applications

CLASSIFICATION

Three Operating Principles
Steam traps are grouped by what physical difference they sense between steam and condensate.
Mechanical
Senses DENSITY difference
Float & inverted-bucket traps. Condensate (dense) and steam (light) move a float or bucket to open/close the valve.
Thermostatic
Senses TEMPERATURE

Steam Traps product detail from Spenomatic Energy Solutions

Kenya industrial systems

MECHANICAL — TYPE 1

Float & Thermostatic (FT) Trap
▶ Animated — plays in slideshow
SIZING
Key factors:
condensate load (kg/h) at the
minimum
differential pressure (inlet − back-pressure) — FT traps are sized on the smallest ΔP, where capacity is lowest.

Thermostatic Steam Traps for industrial sites in Kenya

Africa process plants

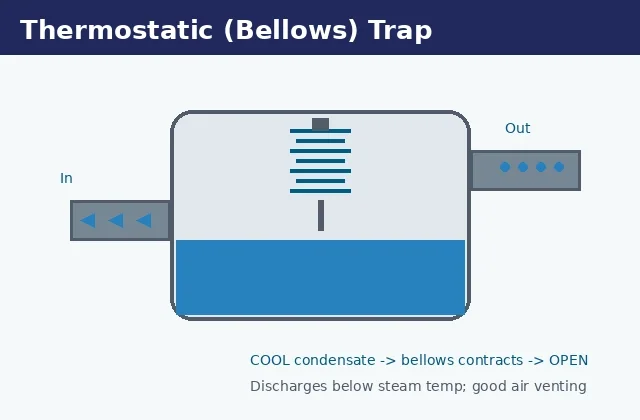

THERMOSTATIC — TYPE 2

Thermostatic (Bellows / Bimetallic) Trap
▶ Animated — plays in slideshow
SIZING
Key factors:
condensate load and ΔP, plus the
sub-cooling allowed
(condensate is held back to cool, which raises effective capacity).

Thermostatic Steam Traps with German quality standards for African process plants

steam traps in Kenya

AT A GLANCE

Type Comparison
Property
Float-Thermostatic
Inverted Bucket
Thermostatic
Thermodynamic
Sensing

Steam Traps solution for Kenya steam and process systems

steam traps across Africa

SELECTION GUIDE

Where to Use Which Trap
Match the trap to the application's load behaviour, pressure and environment.
Steam mains & distribution drip legs
Use: Thermodynamic (disc) or inverted bucket
Small intermittent condensate, high pressure, outdoor freeze-tolerance needed.
Heat exchangers & process heating
Use: Float & Thermostatic

Thermostatic Steam Traps application image for energy and manufacturing facilities in Africa

African steam traps applications

INSIDE THE TRAP

Detailed Cutaway: Float & Thermostatic
▶ Animated cutaway — plays in slideshow
Component Key
Body
Cast cutaway shell; bolts apart for servicing the internals.
Inlet
Condensate, air and steam enter from the equipment.

Steam Traps product detail from Spenomatic Energy Solutions

Kenya industrial systems

WHAT GOES WRONG

The Two Failure Modes
Every steam trap eventually fails in one of two ways. Knowing which tells you what symptom to look for — and what it is costing you.
Failed OPEN —
wastes steam (efficiency loss). Often silent and invisible, so it can run for months.
Failed CLOSED —
floods the process (production loss, water hammer). Usually noticed quickly.

Thermostatic Steam Traps for industrial sites in Kenya

Africa process plants

FAILURE ANALYSIS

How Each Trap Type Fails
The failure mechanism is specific to the design — know the weak point of the trap you have installed.
Float & Thermostatic
Punctured float or worn seat — usually fails OPEN.
Inverted Bucket
Loses water-seal prime on pressure drop — fails OPEN.
Thermostatic

Thermostatic Steam Traps with German quality standards for African process plants

steam traps in Kenya

DECIDE FAST

Quick Selection Logic
Variable / modulating load?
→ Float & Thermostatic
Drip leg on a steam main?
→ Thermodynamic disc
High pressure or dirty steam?
→ Inverted bucket
