Thermodynamic Steam Traps

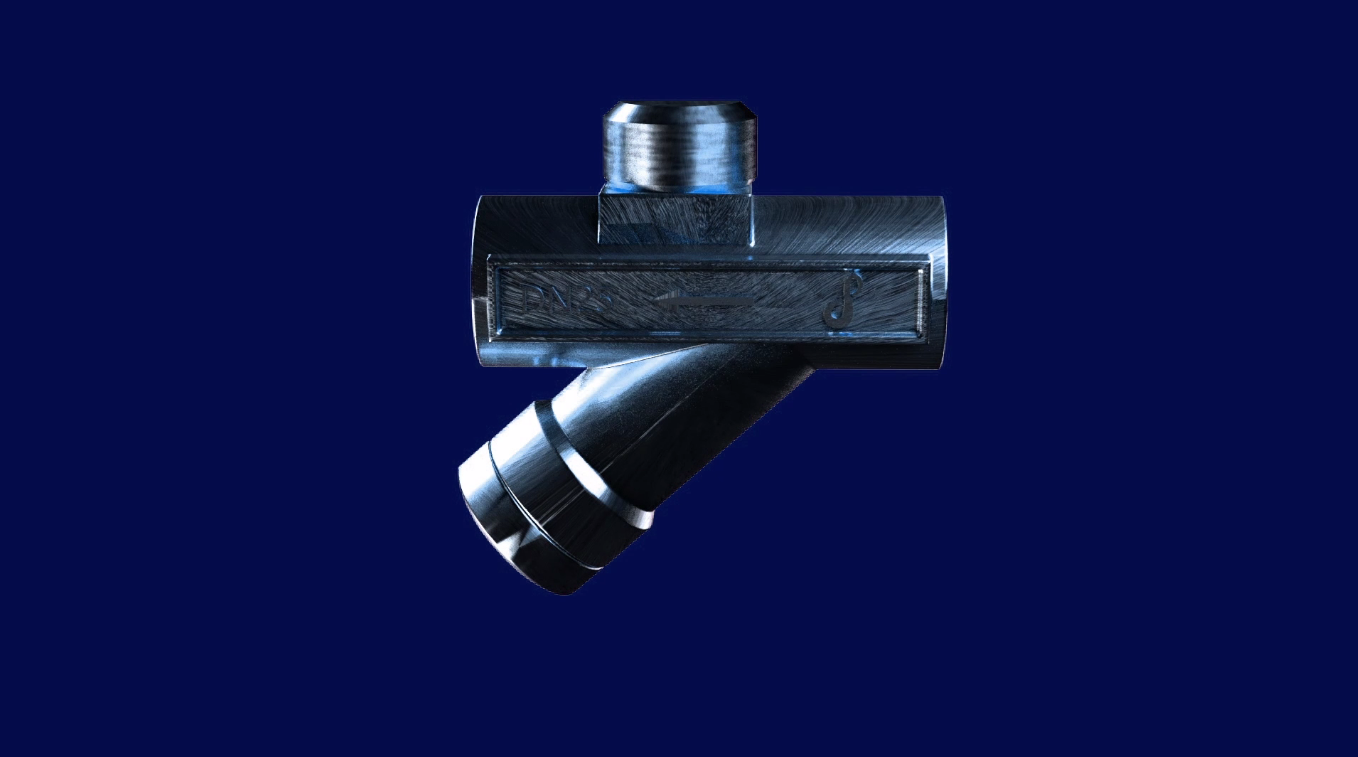

The SKLT25S Thermodynamic Steam Trap by Spenomatic Energy Solutions is a high-performance steam trap designed for efficient condensate discharge and steam system optimization. Its simple yet robust design makes it ideal for industrial applications requiring minimal maintenance and reliable performance.

Video Player
Contact us
Thermodynamic Steam Traps for industrial sites in Kenya

Key Features & Benefits:

โœ… Precision Machining & Good Sealing โ€“ Ensures high efficiency and tight closure to prevent steam loss.
โœ… Hardened Stainless Steel Construction โ€“ Valve disc and seat provide long service life and corrosion resistance.
โœ… Built-in Stainless Steel Strainer โ€“ Protects the trap from debris, reducing maintenance needs.
โœ… Compact & Lightweight โ€“ Designed for easy installation and minimal footprint.
โœ… Versatile Installation โ€“ Works in any orientation, lowering installation costs.
โœ… Wide Operating Pressure Range โ€“ Eliminates the need for valve resizing when pressure conditions change.
โœ… Low Maintenance โ€“ Only one moving part (stainless steel valve disc), reducing failure points.

Technical Specifications:

  • Max Operating Pressure (PMO): 20 bar
  • Max Operating Temperature (TMO): 300ยฐC
  • Sizes Available: DN15, DN20, DN25
  • Connections: Flanged (DIN, ASME), Screwed (BSP,NPT)
    Contact us for custom connections

Applications:

๐Ÿ”น Steam Main Lines & Branch Pipes
๐Ÿ”น Heat Tracing Systems
๐Ÿ”น Steel, Chemical, Automotive, and Paper Industries
๐Ÿ”น Food & Beverage Processing

Refer to the product catalogue for more details.

steam traps in Kenya

Thermodynamic Steam Traps for Kenya and African Industry

Thermodynamic Steam Traps solutions in Kenya need to match the realities of local steam, process, and utility systems while remaining dependable across wider African industrial sites. Built around German quality expectations, the details below combine precise engineering, durable materials, efficient operation, and practical maintenance guidance for teams comparing steam traps Kenya suppliers, steam traps Africa applications, and long-life Thermodynamic Steam Traps performance.

Thermodynamic Steam Traps with German quality standards for African process plants
steam traps in Kenya

STEAM SYSTEM FUNDAMENTALS

  • Steam Traps
  • Why we need them, the main types, their pros & cons, and how to select the right trap for each application
  • Includes animated operation
  • (GIFs play in PowerPoint / Microsoft 365)
Steam Traps solution for Kenya steam and process systems
steam traps across Africa

THE PROBLEM

  • Why Do We Need Steam Traps?
  • As steam gives up its latent heat it condenses into water (condensate). Air and other non-condensable gases also collect in the system. A steam trap is an automatic valve that removes condensate, air and COโ‚‚ โ€” while holding back live steam.
  • Remove condensate
  • Water-logging chills the process, slashes heat transfer and causes uneven heating.
  • Prevent water hammer
  • Slugs of condensate driven by steam can hammer pipework, damaging fittings and risking injury.
  • Vent air & gases
Thermodynamic Steam Traps application image for energy and manufacturing facilities in Africa
African steam traps applications

CLASSIFICATION

  • Three Operating Principles
  • Steam traps are grouped by what physical difference they sense between steam and condensate.
  • Mechanical
  • Senses DENSITY difference
  • Float & inverted-bucket traps. Condensate (dense) and steam (light) move a float or bucket to open/close the valve.
  • Thermostatic
  • Senses TEMPERATURE
Steam Traps product detail from Spenomatic Energy Solutions
Kenya industrial systems

MECHANICAL โ€” TYPE 1

  • Float & Thermostatic (FT) Trap
  • โ–ถ Animated โ€” plays in slideshow
  • SIZING
  • Key factors:
  • condensate load (kg/h) at the
  • minimum
  • differential pressure (inlet โˆ’ back-pressure) โ€” FT traps are sized on the smallest ฮ”P, where capacity is lowest.
Thermodynamic Steam Traps for industrial sites in Kenya
Africa process plants

THERMOSTATIC โ€” TYPE 2

  • Thermostatic (Bellows / Bimetallic) Trap
  • โ–ถ Animated โ€” plays in slideshow
  • SIZING
  • Key factors:
  • condensate load and ฮ”P, plus the
  • sub-cooling allowed
  • (condensate is held back to cool, which raises effective capacity).
Thermodynamic Steam Traps with German quality standards for African process plants
steam traps in Kenya

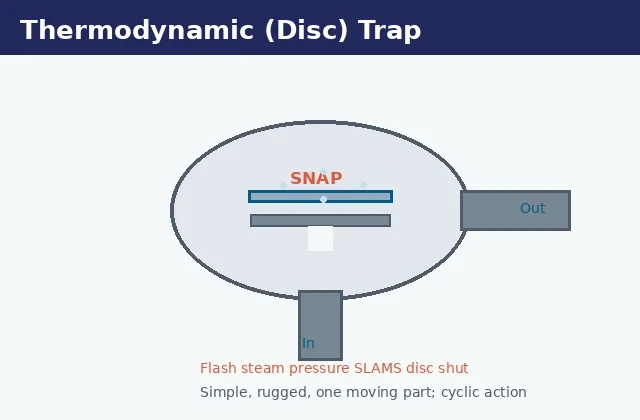

THERMODYNAMIC โ€” TYPE 3

  • Thermodynamic (Disc) Trap
  • โ–ถ Animated โ€” plays in slideshow
  • SIZING
  • Key factors:
  • condensate load and inlet pressure; capacity rises with pressure. Critically,
  • back-pressure must stay below ~50% of inlet
  • or the disc cycles/leaks.
Steam Traps solution for Kenya steam and process systems
steam traps across Africa

MECHANICAL โ€” TYPE 1B

  • Inverted Bucket Trap
  • โ–ถ Animated โ€” plays in slideshow
  • Floats when steam is trapped under it (valve shut) and sinks when condensate fills it (valve opens). A robust mechanical workhorse.
  • Advantages
  • Very reliable; tolerates dirty steam & water hammer
  • Good for high-pressure / superheated steam mains
  • Discharges at steam temperature โ€” efficient
Thermodynamic Steam Traps application image for energy and manufacturing facilities in Africa
African steam traps applications

AT A GLANCE

  • Type Comparison
  • Property
  • Float-Thermostatic
  • Inverted Bucket
  • Thermostatic
  • Thermodynamic
  • Sensing
Steam Traps product detail from Spenomatic Energy Solutions
Kenya industrial systems

SELECTION GUIDE

  • Where to Use Which Trap
  • Match the trap to the application's load behaviour, pressure and environment.
  • Steam mains & distribution drip legs
  • Use: Thermodynamic (disc) or inverted bucket
  • Small intermittent condensate, high pressure, outdoor freeze-tolerance needed.
  • Heat exchangers & process heating
  • Use: Float & Thermostatic
Thermodynamic Steam Traps for industrial sites in Kenya
Africa process plants

WHAT GOES WRONG

  • The Two Failure Modes
  • Every steam trap eventually fails in one of two ways. Knowing which tells you what symptom to look for โ€” and what it is costing you.
  • Failed OPEN โ€”
  • wastes steam (efficiency loss). Often silent and invisible, so it can run for months.
  • Failed CLOSED โ€”
  • floods the process (production loss, water hammer). Usually noticed quickly.
Thermodynamic Steam Traps with German quality standards for African process plants
steam traps in Kenya

FAILURE ANALYSIS

  • How Each Trap Type Fails
  • The failure mechanism is specific to the design โ€” know the weak point of the trap you have installed.
  • Float & Thermostatic
  • Punctured float or worn seat โ€” usually fails OPEN.
  • Inverted Bucket
  • Loses water-seal prime on pressure drop โ€” fails OPEN.
  • Thermostatic
Steam Traps solution for Kenya steam and process systems
steam traps across Africa

TROUBLESHOOTING

  • Symptom โ†’ Likely Cause
  • Read the symptom in the field, then work back to the probable cause and first action.
  • Symptom observed
  • Likely cause
  • First action
  • Cold trap / no discharge
  • Air-bound, blocked strainer, or valve jammed shut
Thermodynamic Steam Traps application image for energy and manufacturing facilities in Africa
African steam traps applications

MAINTENANCE

  • How to Test a Steam Trap
  • No single method is conclusive โ€” combine two or more. Survey traps on a regular schedule; a typical plant has 3โ€“10% failed at any time.
  • Temperature
  • Compare inlet vs outlet with an IR/contact probe. A cold trap may be blocked; outlet near steam temp can signal blow-through.
  • Ultrasonic
  • Listen with an ultrasonic detector. A continuous high-frequency rush usually means steam is leaking through (failed open).
  • Visual / sight glass
Steam Traps product detail from Spenomatic Energy Solutions
Kenya industrial systems

DECIDE FAST

  • Quick Selection Logic
  • Variable / modulating load?
  • โ†’ Float & Thermostatic
  • Drip leg on a steam main?
  • โ†’ Thermodynamic disc
  • High pressure or dirty steam?
  • โ†’ Inverted bucket
