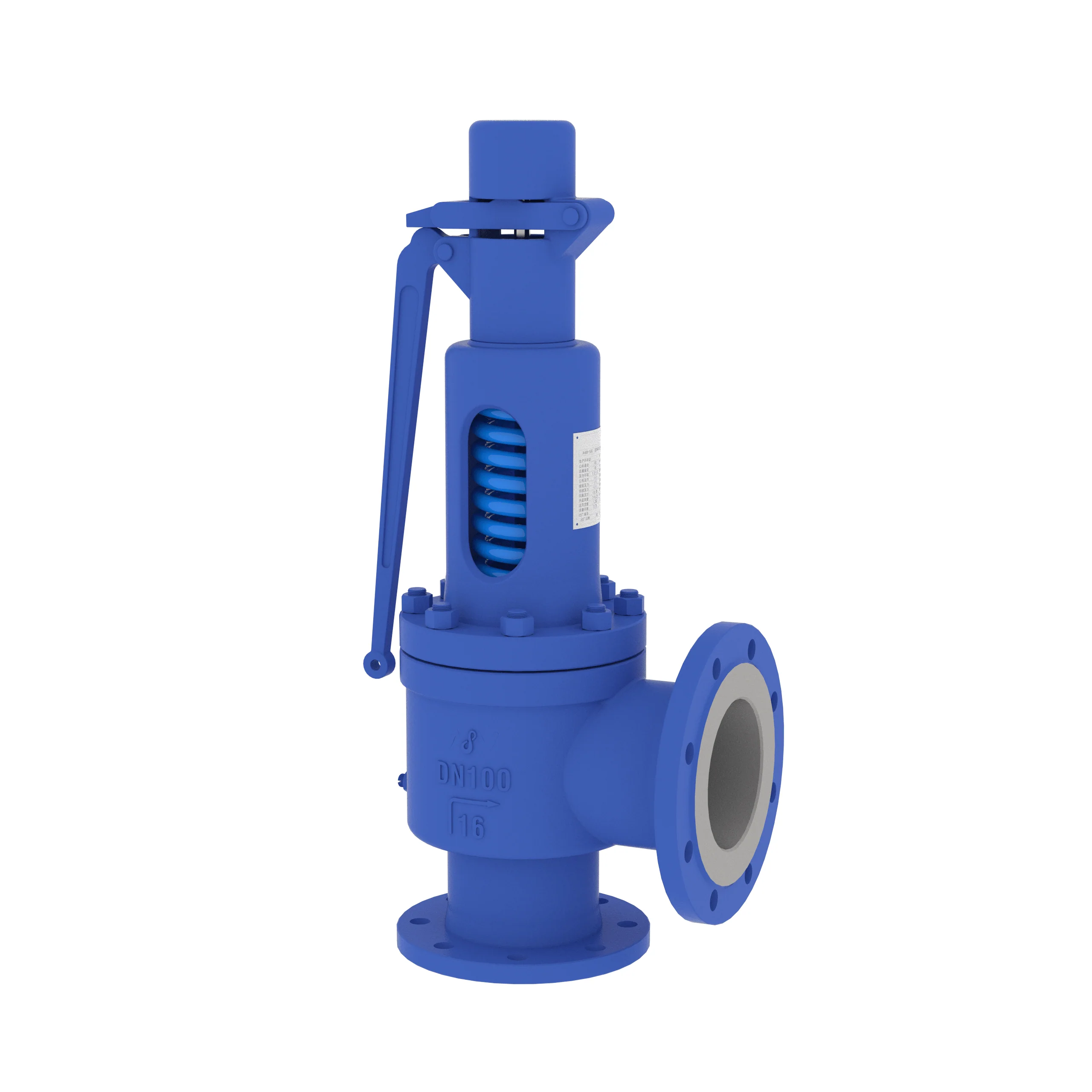

The Safety Valve by Spenomatic Energy Solutions is a high-precision pressure relief device designed to protect pressurized systems from overpressure conditions. It automatically opens to release excess pressure, preventing potential equipment damage, reducing downtime, and ensuring system safety.
Key Features & Benefits:
✅ Automatic Overpressure Protection – Ensures system integrity by releasing excess pressure.
✅ Enhanced Equipment Safety – Prevents damage caused by sudden pressure spikes.
✅ Reliable Performance – Designed to meet German safety standards (3320, 3202, 2543-2545, 3230).
✅ Wide Application Range – Suitable for steam, hot oil, natural gas, and hot/cold water systems.
✅ Durable Construction – Available in carbon steel (1.0619+N) and stainless steel (1.4408) for corrosion resistance.
✅ Easy Installation & Maintenance – Compact design for seamless integration into existing pipelines.
Technical Specifications:
- Nominal Pressure: PN40 / PN16
- Nominal Diameter: DN20 – DN150 (Model 35.901/902/91/912), DN20 – DN100/150 (Model 55.901/911)
- Working Temperature: -10°C to 450°C (Carbon Steel), -60°C to 400°C (Stainless Steel)
- Flow Area Range: 254 mm² – 12,266 mm²
- Connections: Flanged (DIN, ASME), Screwed (BSP, NPT)
Contact us for custom connections
Applications:
🔹 Steam Systems
🔹 Thermal Oil Systems
🔹 Natural Gas Processing
🔹 Hot & Cold Water Systems
🔹 Industrial Pressure Vessels
